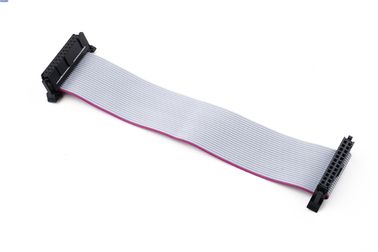

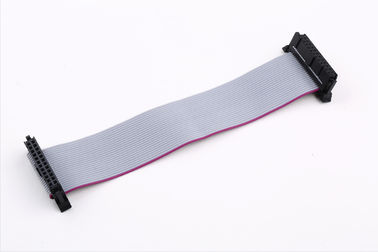

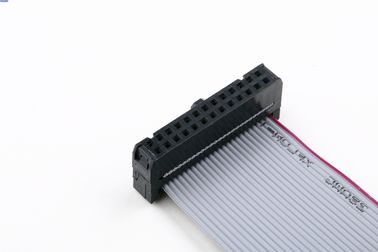

2.54mm Pitch Flat Ribbon Cable Assembly Assembly With Butterfly Hook PVC Cable

    • 2.54mm Pitch Flat Ribbon Cable Assembly Assembly With Butterfly Hook PVC Cable
    • 2.54mm Pitch Flat Ribbon Cable Assembly Assembly With Butterfly Hook PVC Cable
    • 2.54mm Pitch Flat Ribbon Cable Assembly Assembly With Butterfly Hook PVC Cable
  • 2.54mm Pitch Flat Ribbon Cable Assembly Assembly With Butterfly Hook PVC Cable

    Product Details:

    Place of Origin: China
    Brand Name: JWY
    Certification: UL/SGS/RoHs
    Model Number: CA22-24N2ABXX02

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: Negotiation
    Packaging Details: PE Bag
    Delivery Time: 7 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 10000pcs per day
    Contact Now
    Detailed Product Description
    Connector: 2*13 Pins IDC Connector Pitch: 2.54mm(0.1'')
    Contact Finish: Gold Over Ni Cable: UL 2651 26 Ways Flat Cable
    Cable Insulator: PVC Material Conductor: Copper
    Conductor Dimension: 7/0.12 Mm Crimp Machine: Automatic Machine

    2.54mm Pitch Flat Ribbon Cable Assembly with Butterfly hook PVC Cable



    Description:



    Connector IDC Connector/Rentanguar Connector
    Color Black/Gray
    Pitch 2.54mm
    Contact Plated Gold over Ni
    Contact Material Brass
    Cable  UL2651 28AWG
    Cable Material PVC
    Conductor Copper
    Conductor Dimenison

    7/0.12mm

    Products Length Be customized
    Style Wire to Board
    Pins available 06Pins to 64Pins
    Cable Crimp direction Same side/Oppsite side/Up sand down side
    Testing 100% Open & Short Test
    Certification UL Authentication
    Equivalent Brand Harwin/JST/Samtec



    How to distinguish cable direction



    1).Same direction

    Both bump at the same way.

    2).Opposite direction

    Both bump at the oppsite way.

    3). Up and dowm direction

    Both bump at the different way. For the details,you can check as below image description.

    2.54mm Pitch Flat Ribbon Cable Assembly Assembly With Butterfly Hook PVC Cable

    Why Choose CNJWY



    Research and Development Capability:

    Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.



    OEM/ODM Producing

    CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.



    Quality Guarantee

    Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.



    Competitive Price

    More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.



    FAQ:



    1. Are you a Facotry?

    Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.

    2. How to get a free sample to check the quality?

    We ususlly offer within 20pcs samples, but freight should be coolected

    3. When can I get a quotation of cable assembly?

    There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.

    4. What about the lead time for mass production?

    It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.



    Product Application:



    Flat ribbon cable assembly widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales
