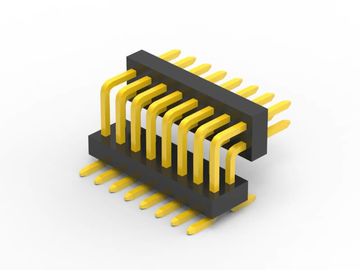

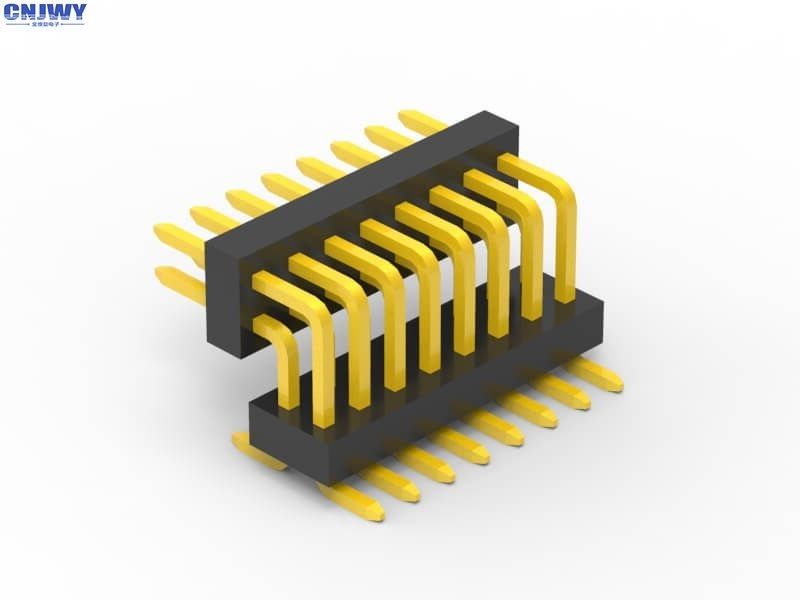

Concave Bending PCB Header Connector SMT Type Current Rating 1.0AMP

Concave Bending PCB Header Connector SMT Type Current Rating 1.0AMP

    • Concave Bending PCB Header Connector SMT Type Current Rating 1.0AMP
    • Concave Bending PCB Header Connector SMT Type Current Rating 1.0AMP
  • Concave Bending PCB Header Connector SMT Type Current Rating 1.0AMP

    Product Details:

    Place of Origin: China
    Brand Name: JWY
    Certification: UL/SGS/RoHs/REACH
    Model Number: ST100-XXXXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 2Kpcs
    Price: Negotiation
    Packaging Details: PE/Tube/Tape/Reel Packaging
    Delivery Time: 7 to 15 working days
    Payment Terms: T/T & Western Union
    Supply Ability: 100000pcs per day
    Contact Now
    Detailed Product Description
    Current Rating: 1.0AMP ContacContact Resistancet: 20mΩ Max
    Withstand Voltage: 500V AC/DC Insulation Resistance: 1000MΩ Min
    Operation Temperature: -40℃ To +105℃ Contact Material: Brass
    Contact Plating: Au Or Sn Over Ni Insulator Material: PA6T/PA9T/PBT+30% GF(UL94V-0)

    1.0mm PCB Header Connector Double Plastic Concave Bending SMT Type





    What's the Pin Header



    1. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.

    2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.

    3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.

    4. Regarding pin header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.

    5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.

    Specifications:



    1. Pitch:1.00mm(0.039'')

    2. Connector Name: PCB Connector/Pin Header

    3. Insulation Material:PA6T UL 94-V0

    4. Contact Material: Copper Alloy

    5: Mounting Type: SMD/SMT

    6: Number of Row: Dual Row

    7: Contact Finish: Gold Over Nickel

    8: Termination: Solder

    9: Color Standard (Black) or be customized

    10: Current Rating:1.0 AMP

    11: Withstand Voltage:500 V AC/DC

    12: Contact Resistance:20mΩ Max

    13: Contact Shape: Square Pin

    14: Pin Length: Customization

    15: Pin Available:2 Pins to 40 Pins


    Shenzhen Jinwei Yi Electronics Co., Ltd. was established in 1998, is based on mold research and development, injection molding, injection molding, stamping, plating, assembly as one of the connector suppliers; professional production Pai Tien, Pai mother, Jane cattle, horns ), IDC, short cap, round hole, Continental, FPC / FFC soft row, SATA, deck, USB, PLCC, board to board and other series of connectors; Program
