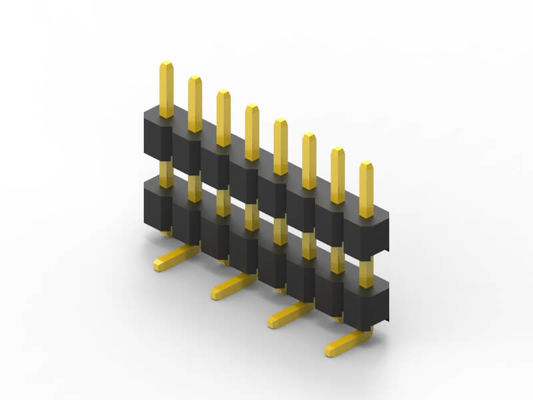

PCB Surface Mount Pin Header , Through Hole Single Row 2 Mm Header Connector

PCB Surface Mount Pin Header , Through Hole Single Row 2 Mm Header Connector

  • PCB Surface Mount Pin Header , Through Hole Single Row 2 Mm Header Connector
PCB Surface Mount Pin Header , Through Hole Single Row 2 Mm Header Connector
Product Details:
Place of Origin: China
Brand Name: JWY
Certification: UL/SGS/RoHs/REACH
Model Number: ST200-XXXXXX
Payment & Shipping Terms:
Minimum Order Quantity: 2Kpcs
Price: Negotiation
Packaging Details: PE/Tray/Tube/Tape/Reel Packaging
Delivery Time: 7 to 15 working days
Payment Terms: T/T & Western Union
Supply Ability: 100000pcs per day
Contact Now
Detailed Product Description
Current Rating: 1.0AMP ContacContact Resistancet: 20mΩ Max
Withstand Voltage: 500V AC/DC Insulation Resistance: 1000MΩ Min
Operation Temperature: -40℃ To +105℃ Contact Material: Brass
Contact Plating: Au Or Sn Over Ni Insulator Material: PA6T/PA9T/PBT+30% GF(UL94V-0)
Application: Navigation/mining Machine/Smart Home
High Light:

surface mount board to board connector

,

right angle board to board connector

PCB Surface Mount Pin Header , Through Hole Single Row 2 Mm Header Connector



Specifications:



1. Pitch:2.00mm(0.079'')

2. Connector Name: PCB Connector/Pin Header

3. Insulation Material:PA6T UL 94-V0

4. Contact Material: Copper Alloy

5: Mounting Type: Through Hole

6: Number of Row: Single Row

7: Contact Finish: Gold Over Nickel

8: Termination: Solder

9: Color:Black or be customized

10: Current Rating:2.0 AMP

11: Withstand Voltage:500 V AC/DC

12: Contact Resistance:20mΩ Max

13: Contact Shape: Square Pin

14: Pin Length: Customization

15: Pin Available:2 Pins to 80 Pins



Product Application:



Male pin header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team





What's the Pin Header



1. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.

2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.

3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.

4. Regarding pin header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.

5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.







Why Choose CNJWY



Automatic Production

More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.



Delivery on time

Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.



Make Value

Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.



Instant Response

Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.
