2.54 Mm Male Smd Pin Header , Brass Contact Material Connector Pin Header

2.54 Mm Male Smd Pin Header , Brass Contact Material Connector Pin Header

    • 2.54 Mm Male Smd Pin Header , Brass Contact Material Connector Pin Header
    • 2.54 Mm Male Smd Pin Header , Brass Contact Material Connector Pin Header
  • 2.54 Mm Male Smd Pin Header , Brass Contact Material Connector Pin Header

    Product Details:

    Place of Origin: China
    Brand Name: JWY
    Certification: UL/SGS/RoHs/REACH
    Model Number: ST200-XXXXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 2Kpcs
    Price: Negotiation
    Packaging Details: PE/Tray/Tube/Tape/Reel Packaging
    Delivery Time: 7 to 15 working days
    Payment Terms: T/T & Western Union
    Supply Ability: 100000pcs per day
    Contact Now
    Detailed Product Description
    Current Rating: 3.0AMP ContacContact Resistancet: 20mΩ Max
    Operation Temperature: -40℃ To +105℃ Contact Material: Brass
    Contact Plating: Au Or Sn Over Ni Application: Navigation/Instrument/UAV
    High Light:

    circuit board pin connectors


    right angle pin connector

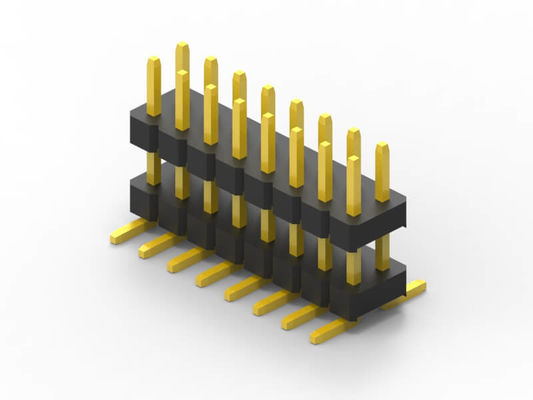

    2.54mm Male Pin Header Connector Double Plastic SMD Type Reel Packing With Cap



    1. Pitch:2.54mm(0.1'')

    2. Connector Name: PCB Connector/Pin Header

    3. Insulation Material:PA6T UL 94-V0

    4. Contact Material: Copper Alloy

    5: Mounting Type: SMD/SMT

    6: Number of Row: 2Rows

    7: Contact Finish: Gold or Tin Plated

    8: Termination: Solder

    9: Insulation Color:Standard (Black) or be customized

    10: Current Rating:3.0A

    11: Withstand Voltage:500V AC/DC

    12: Contact Resistance:20mΩ Max

    13: Contact Shape: Square Pin

    14: Pin Length: Customization

    15. Insulation Height:Customization

    16: Pin Available:2Pins to 40Pins


    What's the Pin Header


    1. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.

    2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.

    3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.

    4. Regarding pin header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.

    5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.


    Why Choose CNJWY:


    1. We value time, as the greatest currency. It’s well known that you can never get back lost time. All our products are centered around this idea. At CNJWY, We provide the best solution way to save your time.

    2. We are deeply committed to the health and safety of the world. CNJWY has been implementing the ISO 14001:2004 environmental management system. We have enhanced our environmental performance. And we apply this regulation to all of our business.

    3. All the products are available for customized packaging according to your demand.

    4. Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.


    Product Application:


    Male pin header widely used in different industry such as automotive, medical equipment, motherboard and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
