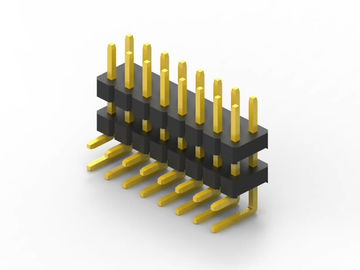

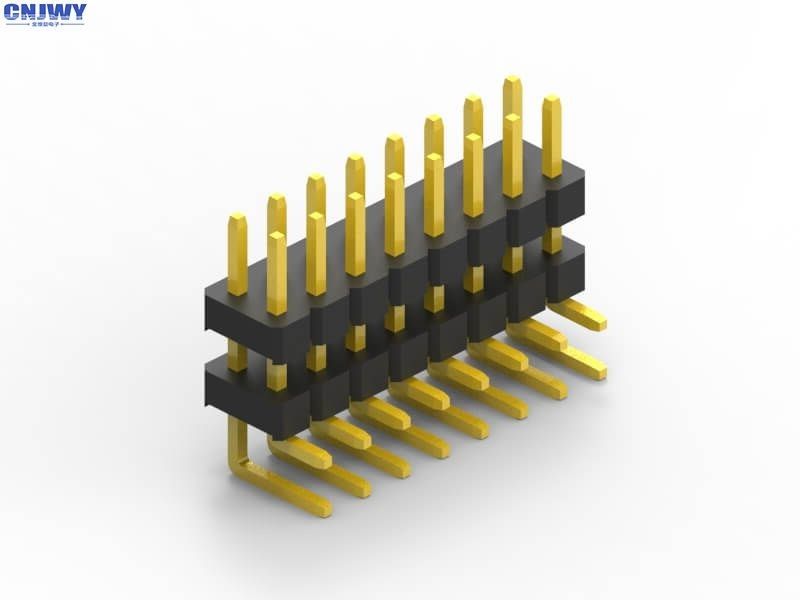

2 Pins To 100 Pins Circuit Board Pin Connectors , Double Plastic 2.54 Mm Pin Connector

2 Pins To 100 Pins Circuit Board Pin Connectors , Double Plastic 2.54 Mm Pin Connector

  • 2 Pins To 100 Pins Circuit Board Pin Connectors , Double Plastic 2.54 Mm Pin Connector
  • 2 Pins To 100 Pins Circuit Board Pin Connectors , Double Plastic 2.54 Mm Pin Connector
2 Pins To 100 Pins Circuit Board Pin Connectors , Double Plastic 2.54 Mm Pin Connector
Product Details:
Place of Origin: China
Brand Name: JWY
Certification: UL/SGS/RoHs/REACH
Model Number: ST254-XXXXXX
Payment & Shipping Terms:
Minimum Order Quantity: 2Kpcs
Price: Negotiation
Packaging Details: PE/Tray/Tube/Tape/Reel Packaging
Delivery Time: 7 to 15 working days
Payment Terms: T/T & Western Union
Supply Ability: 100000pcs per day
Contact Now
Detailed Product Description
Gender: Male Color: Black
Pitch: 2.54mm Terminal Size: 0.64mm Square Pin
Termination: Solder Packing: Bulk
High Light:

surface mount pin header

,

right angle pin connector

2.54mm Male Pin Header Connector Concave Bending Pin With Gold Plated Double Plastic



Specifications:



1. Pitch:2.54mm(0.1'')

2. Connector Name: PCB Connector/Pin Header

3. Insulation Material:PA6T UL 94-V0

4. Contact Material: Copper Alloy

5: Mounting Type: Through Hole

6: Number of Row: 2Rows

7: Contact Finish: Gold Over Nickel

8: Termination: Solder

9: Color Standard (Black) or be customized

10: Current Rating:3.0A

11: Withstand Voltage:500V AC/DC

12: Contact Resistance:20mΩ Max

13: Contact Shape: Square Pin

14: Pin Length: Customization

15: Pin Available:2Pins to 100Pins

2 Pins To 100 Pins Circuit Board Pin Connectors , Double Plastic 2.54 Mm Pin Connector 02 Pins To 100 Pins Circuit Board Pin Connectors , Double Plastic 2.54 Mm Pin Connector 12 Pins To 100 Pins Circuit Board Pin Connectors , Double Plastic 2.54 Mm Pin Connector 22 Pins To 100 Pins Circuit Board Pin Connectors , Double Plastic 2.54 Mm Pin Connector 3

What's the Pin Header



1. Pin header is called universal connector. Based on different designs for PCB, they choose different pitch connectors to meet.

2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.

3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.

4. Regarding pin header electrical and mechanical properties, the same pitch has the same function, which we have shown clearly in our datasheet.

5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability



Why Choose CNJWY:



1. We value time, as the greatest currency. It’s well known that you can never get back lost time. All our products are centered around this idea. At CNJWY, We provide the best solution way to save your time.

2. We are deeply committed to the health and safety of the world. CNJWY has been implementing the ISO 14001:2004 environmental management system. We have enhanced our environmental performance. And we apply this regulation to all of our business.

3. All the products are available for customized packaging according to your demand.

4. Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.





Product Application:



Male pin header widely used in different industry such as air-condition, multimedia, UAV and so on. as below image is application scenarios. image is a limitation, for more detail you can directly contact our sales team
