|Place of Origin:||China|
|Minimum Order Quantity:||2Kpcs|
|Packaging Details:||Tray/Tube/Tape/Reel Packaging|
|Delivery Time:||7 to 15 working days|
|Payment Terms:||T/T & Western Union|
|Supply Ability:||100000pcs per day|
|Contact Resistance:||20mΩ Max||Withstand Voltage:||500V AC/DC|
|Insulation Resistance:||1000MΩ Min||Operation Temperature:||-40℃ To +105℃|
|Contact Material:||Phosphor Bronze||Current Rating:||3AMP|

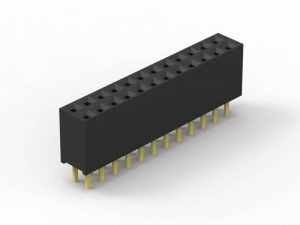

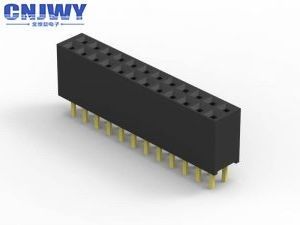

2.54 mm Female Header Connector DIP Type Dual Row Black PBT Plastic
What is a PCB Connector?
Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.
PCB Connector orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:
Other names for PCB Connectors
PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.
|Products Name||Female Header/PCB Connector|
|Current Rating||3.0 AMP|
|Contact Resistance||20 mΩ Max|
|Withstand Voltage||500 V AC/DC|
|Insulation Resistance||1000 MΩ Min|
|Operation Temperature||-40℃ to 105℃|
|Contact Material||Coppy Alloy|
|Contact Plating||Au or Sn Over Ni|
|Insulator Material||PA6T+30 GF(UL94-V0)|
|Mounting Type||Through Hole|
|Number of Row||Dual|
|Contact Finish||Gold Flash|
|Pins available||4 Pins to 40 Pins|
Why Choose CNJWY:
More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.
Delivery on time
Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.
Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.
Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time
Female header connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
