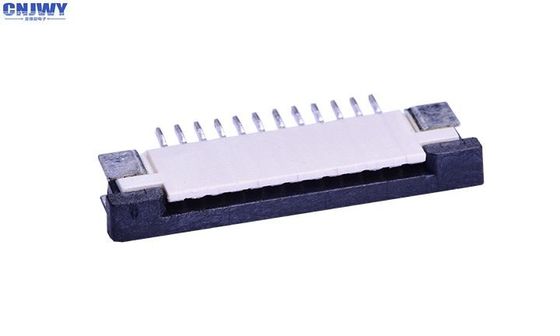

Horizontal FPC Cable Connector 1mm Pitch Height 2.46 MM Beige Tin Plating

Horizontal FPC Cable Connector 1mm Pitch Height 2.46 MM Beige Tin Plating

  • Horizontal FPC Cable Connector 1mm Pitch Height 2.46 MM Beige Tin Plating
  • Horizontal FPC Cable Connector 1mm Pitch Height 2.46 MM Beige Tin Plating
Horizontal FPC Cable Connector 1mm Pitch Height 2.46 MM Beige Tin Plating
Product Details:
Place of Origin: China
Brand Name: JWY
Certification: SGS/ROHS/UL/REACH
Model Number: FPCWT-XXXXXXXX
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiation
Packaging Details: Tube packing / reel packing
Delivery Time: 7 to 15 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000000pcs
Contact Now
Detailed Product Description
Rated Voltage: 50V AC (RMS) /DC Working Temperature Rangeance: -20ºC~+85ºC
Voltage Resistance: 200V AC R.m.s Materialal: LCP YL94V-0
Rated Current: 1.0 A AC(RMS)
High Light:

flexible flat cable connector

,

fpc to wire connector

FFC FPC Connector 1.0 MM Bottom Product height 2.46 MM Beige Tin Plating​



Product Specifications:



Type  FFC FPC connector horizontal
Spacing  1.0mm
height  2.46mm
Rated current  0.5A AC (RMS)
Working temperature range  -20ºC~+85ºC
Voltage resistance 500V AC r.m.s
material quality LCP





Purpose of service:



1. the series of product specifications are complete, but also tailor-made.
2. import equipment and high degree of automation timely delivery. Usually 7-10 days.
3. strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL-certified.
4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive
5. the quality is safe and reliable, the price is competitive.





Our Advantages:



1. Concentrating and concentrating "is a consistently adhered service concept



2.The company has a standardized, standardized and professional service system to provide customers with rich service experience and professional knowledge to ensure that customers enjoy high quality, high efficiency and personalized service resources.



3. Meet the needs of different levels of customers to achieve the value of customers in the use of products.



4. It is our duty to serve you. Your satisfaction is our pursuit.



5. After sale service four "to": customer oriented, in good faith as the principle, with the most economic means, with the fastest speed.



What is an FPC connector?


The FPC FFC flat connector is not limited to current. In the rapid development of Optoelectronics technology, the carrier of the optical fiber system is light, and glass and plastic replace the wires in ordinary circuits. However, FPC FFC flat connectors are also used in the optical signal path, and their role is the same as that of the circuit FPC FFC flat connector.
Its biggest advantage is that it does not require cables. It is simple to install and disassemble, easy to replace on the spot, fast fit, smooth and stable separation, and good high-frequency characteristics can be obtained.



Product Use Matters:



Use common sense one



During the disassembly of the FPC connector, when opening the connector lock cover, care must be taken not to operate too hard, so as not to cause deformation and damage of the connector. The second is that if you use too much force, it is also a fault problem that can easily cause the terminal to deform or break in the connector lock cover.


Use common sense two


It is actually not recommended to unplug the connector when the FPC connector is not in use. Because components such as terminals are usually affected by a certain amount of wear on connector connectors, too frequent connectors can cause the impact to be reduced to the service life of their connectors. Moreover, the connector's interface is exposed to air, and it is also easier to invade some dust and debris, which also affects the performance of the connector.



FPC FFC specifications can be divided into as follows: up and down, horizontal vertical, pick-lock, etc., spacing 0.3 MM 0.5 MM 1.0 MM 1.25 MM 2.54 MM, etc..FPC connectors are widely used in computer motherboards, liquid crystal displays, telecommunications cards, memory, and mobile hard disks, including mobile devices.



Horizontal FPC Cable Connector 1mm Pitch Height 2.46 MM Beige Tin Plating 0
