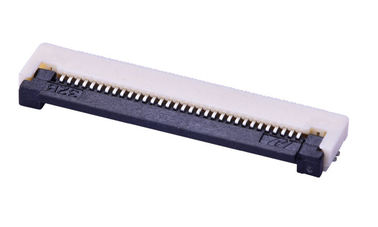

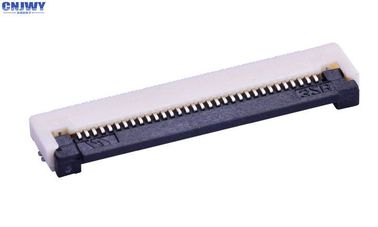

Flexible Printed Circuit Connector , FFC FPC Connector 0.5mm Horizontal Down Connect

China Flexible Printed Circuit Connector , FFC FPC Connector 0.5mm Horizontal Down Connect supplier
Flexible Printed Circuit Connector , FFC FPC Connector 0.5mm Horizontal Down Connect supplier Flexible Printed Circuit Connector , FFC FPC Connector 0.5mm Horizontal Down Connect supplier

Large Image :  Flexible Printed Circuit Connector , FFC FPC Connector 0.5mm Horizontal Down Connect

Product Details:

Place of Origin: China
Brand Name: JWY
Certification: SGS/ROHS/UL/REACH
Model Number: FPC0.5WT-XXXXXXXX

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: negotiation
Packaging Details: Tube packing / reel packing
Delivery Time: 7 to 15 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000000pcs
Contact Now
Detailed Product Description
Contact Resistance: 20 MΩ Max Voltage Resistance: 200V AC R.m.s
Rated Current: 0.5 A AC(RMS) Insulation Resistance: 500 MΩ Min
Rated Voltage: 50V AC(RMS) / DC Type: FFC FPC Connector 0.5mm Horizontal

FFC FPC Connector 0.5mm Horizontal Down Connect (H2.0) Lock Material PA9T

FPC future innovation trend:


1. Thickness. The thickness of FPC must be more flexible and thinner.



2. Folding resistance. Bending is the inherent characteristic of FPC. The FPC resistance of the future must be stronger and must be more than 10 thousand times. Of course, this requires better substrates.



3. Price. At this stage, the price of FPC is much higher than that of PCB. If the price of FPC is down, the market will be wider.



4. Process level. In order to meet various requirements, the FPC process must be upgraded, and the minimum aperture and minimum linewidth / line spacing must meet higher requirements.



Specifications:



Type FFC FPC Connector 0.5mm Horizontal
Rated current  0.5A AC (RMS)
Rated voltage  50V AC(RMS) / DC
Operating temperature range -25º C ~ +85º C
Insulation resistance 500 MΩ Min
Contact resistance  20 mΩ Max
Voltage resistance 200V AC r.m.s



What is the FPC connector:


The FPC FFC flat connector is not limited to current, but in the rapid development of optoelectronic technology today, the carrier of the transmission signal is light, glass and plastic replace the wire in the ordinary circuit, but the optical signal path also uses the FPC FFC flat connector, their function and the circuit FPC FFC flat connection The connector is the same.


Common sense of product use:


FPC connector in the process of disassembly, in the opening of the connector lock cover, should pay attention to the operation strength can not be too large, so as to cause the deformation and damage to the connector. Second, excessive exertion is also a problem that can easily lead to deformation or break of terminals in the connector lock cover.


Common sense of product use two:



In fact, when the FPC connector is not used, it is not recommended to unplug connectors. Because the components such as terminals, such as the connector, usually affect a certain wear and tear, so too frequent plug - in will result in an impact on the service life of its connector. Moreover, the connector's interface is exposed in the air, and it is also easy to invade some dust and debris, which is also affecting the performance of connectors.



Our Service:



1. the series of product specifications are complete, but also tailor-made.
2. import equipment and high degree of automation timely delivery. Usually 7-10 days.
3. strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL-certified.
4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive
5. the quality is safe and reliable, the price is competitive.



Company Index:


1.Quality policy: innovation, continuous improvement, quality first, customer satisfaction.


2.Environmental policy: comply with environmental regulations, strive to prevent and control pollution, rationally use resources, manufacture green products, raise environmental awareness, and continuously improve the environment.


3.Business philosophy: quality, loyalty, Co-Prosperity.


4.Service quality: technology-oriented, customer-oriented, and advanced high-precision manufacturing process, so that we are in the leading position in the industry. In the future, we will work with you to create a better tomorrow based on our high precision manufacturing technology and high quality service.



Where it needs to be used:



The FPC connector is the development result of this trend aimed at addressing the challenges of this expanding market: the urgent need for smaller pin spacing or space space, thinner thickness and more lightweight interconnection solutions. The application of the product is also wide, such as the following:



Flexible Printed Circuit Connector , FFC FPC Connector 0.5mm Horizontal Down Connect
