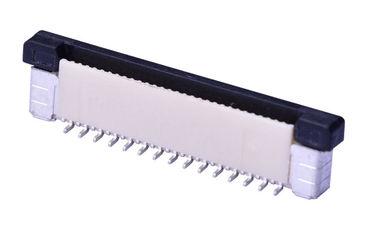

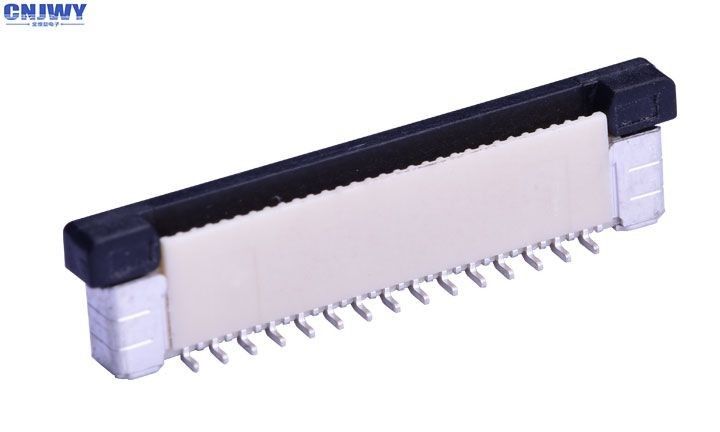

Vertical Flexible FFC FPC Connector , Phosphorus Bronze 0.5 Mm Fpc Connector

Vertical Flexible FFC FPC Connector , Phosphorus Bronze 0.5 Mm Fpc Connector

    • Vertical Flexible FFC FPC Connector , Phosphorus Bronze 0.5 Mm Fpc Connector
    • Vertical Flexible FFC FPC Connector , Phosphorus Bronze 0.5 Mm Fpc Connector
  • Vertical Flexible FFC FPC Connector , Phosphorus Bronze 0.5 Mm Fpc Connector

    Product Details:

    Place of Origin: China
    Brand Name: JWY
    Certification: SGS/ROHS/UL/REACH
    Model Number: FPC0.5LT-XXXXXXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: negotiation
    Packaging Details: Tube packing / reel packing
    Delivery Time: 7 to 15 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 10000000pcs
    Contact Now
    Detailed Product Description
    Contact Resistance: 20 MΩ Max Voltage Resistance: 200V AC R.m.s
    Rated Current: 0.5 A AC(RMS) Insulation Resistance: 500 MΩ Min
    Rated Voltage: 50V AC(RMS) / DC Tyepe: FFC FPC Connector Vertical

    FFC FPC Connector 0.5mm Vertical Material-Metal Phosphorus Bronze



    FPC future innovation trend:


    1. Thickness. The thickness of FPC must be more flexible and thinner.



    2. Folding resistance. Bending is the inherent characteristic of FPC. The FPC resistance of the future must be stronger and must be more than 10 thousand times. Of course, this requires better substrates.



    3. Price. At this stage, the price of FPC is much higher than that of PCB. If the price of FPC is down, the market will be wider.



    4. Process level. In order to meet various requirements, the FPC process must be upgraded, and the minimum aperture and minimum linewidth / line spacing must meet higher requirements.



    product details:



    Tye FFC FPC connector vertical
    Spacing  0.5mm
    height  3.3mm
    PIN number 4-22,24-30,32-36
    Rated current  0.5A AC (RMS)
    Rated voltage  50V AC(RMS) / DC
    Operating temperature range -40º C ~ +85º C
    Insulation resistance 500 MΩ Min
    Contact resistance  20 mΩ Max
    Voltage resistance 200V AC r.m.s



    What is the FPC connector:


    The FPC FFC flat connector is not limited to current, but in the rapid development of optoelectronic technology today, the carrier of the transmission signal is light, glass and plastic replace the wire in the ordinary circuit, but the optical signal path also uses the FPC FFC flat connector, their function and the circuit FPC FFC flat connection The connector is the same.


    Common sense of product use:


    FPC connector in the process of disassembly, in the opening of the connector lock cover, should pay attention to the operation strength can not be too large, so as to cause the deformation and damage to the connector. Second, excessive exertion is also a problem that can easily lead to deformation or break of terminals in the connector lock cover.


    Common sense of product use two:



    In fact, when the FPC connector is not used, it is not recommended to unplug connectors. Because the components such as terminals, such as the connector, usually affect a certain wear and tear, so too frequent plug - in will result in an impact on the service life of its connector. Moreover, the connector's interface is exposed in the air, and it is also easy to invade some dust and debris, which is also affecting the performance of connectors.



    Our Service:



    1. the series of product specifications are complete, but also tailor-made.
    2. import equipment and high degree of automation timely delivery. Usually 7-10 days.
    3. strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL-certified.
    4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive



    Automatic Production

    More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.

    Delivery on time

    Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.

    Make Value

    Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.

    Instant Response

    Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.



    Scope of use:



    The FPC connector is the development result of this trend aimed at addressing the challenges of this expanding market: the urgent need for smaller pin spacing or space space, thinner thickness and more lightweight interconnection solutions. The application of the product is also wide, such as the following:



    Vertical Flexible FFC FPC Connector , Phosphorus Bronze 0.5 Mm Fpc Connector
