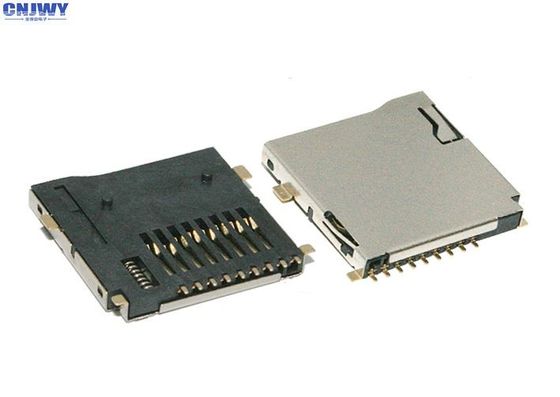

TF External Welding Micro SD Card ConnectorHolder 9 PIN Four Feet Self Shell Type

    • TF External Welding Micro SD Card ConnectorHolder 9 PIN Four Feet Self Shell Type
    • TF External Welding Micro SD Card ConnectorHolder 9 PIN Four Feet Self Shell Type
  • TF External Welding Micro SD Card ConnectorHolder 9 PIN Four Feet Self Shell Type

    Product Details:

    Place of Origin: China
    Brand Name: JWY
    Certification: ROHS/SGS/UL/REACH
    Model Number: SD50-XXXXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: negotiation
    Packaging Details: Tube/Reel packaging
    Delivery Time: 10 to 15 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 10000000PCS
    Contact Now
    Detailed Product Description
    Rated Voltage: 100V AC(RMS) / DC Insulation Resistance: 1000 MΩ Min
    Voltage Resistance: 500V AC R.m.s Operating Temperature Rang: -25º C ~ +80º C
    Rated Current: 0.5 A AC(RMS) Durability: 5000 Cycles

    TF External Welding Card Holder 9PIN Four Feet SMT Type Positioning Column Self Shell Type



    Product specifications :



    Model  TF external welding card holder
    Type 9P quadruped SMT belt
    Specification positioning column self projectile
    Rated current  0.5A AC (RMS)
    Rated voltage 100V AC(RMS) / DC
    Pull out 1-10 Newtons
    Durability 5000 Cycles
    Contact resistance 100 mΩ Max
    Insulation resistance 1000 MΩ Min
    Voltage resistance 500V AC r.m.s
    Operating temperature range -25º C ~ +80º C



    The main specifications of SD card seats are:



    reset, pad type, three in one, four in one, long card, short card, etc.
    SD card seats provided include: S card TF full plastic, according to the different packaging methods are divided into, patch SD card and plug-in SD card seat; in addition to self - bomb SD card, with a lock, SD card, micro SD card and so on.


    What is the SD card connector?


    It is a bouncing device. There is a reset device structure at the bottom of the card slot of the SD card holder. You can jump out the SD card.


    Operation principle of SD card:



    1. at the bottom of the SD card seat, there is a small diameter and small diameter spring or a cut cartridge, which is embedded in the card seat by the SD card, but can jump out on the contrary. Therefore, the clamp can not only temporarily lock the structure, but also temporarily pop-up, and so on, its main is to rely on this reset device to operate.



    2. there is a corresponding convex opening in the slot, and its SD card is inserted into the card slot of the card seat, and then the read and write operation of the SD card is controlled by the command form transmission by the SD card seat, and the reading and writing operation of the multiple SD card or single SD card can also be carried out according to the command.



    FAQ:

    1. Are you a Facotry?

    Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.

    2. How to get a free sample to check the quality?

    We ususlly offer within 20pcs samples, but freight should be coolected

    3. When can I get a quotation assembly?

    There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.

    4. What about the lead time for mass production?

    It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.



    Our Advantages:


    1. High-Quality Guarantee

    CNJWY has been focusing on improving the Quality Control Systems, aiming at providing high-quality products that fit ISO9001 Certificate for years.



    2.Competitive Price

    We have a whole set production process which include electroplating,stamping,injection molding,assemly to ensure our competetive price.



    3. Customized Packaging

    All the products are available for customized packaging according to your demand.



    4. Fast Delivery

    Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.



    Application method of SD card:



    The SD holder is a bouncing device. There is generally a reset device structure at the bottom of the card slot of the SD holder. The SD card can be ejected. The principle of operation is that there is a small diameter and small diameter spring or an incision shrapnel at the bottom of the slot in the SD card seat. Press the SD card to insert the card inside the card seat. On the contrary, you can bounce out with a click.



    TF External Welding Micro SD Card ConnectorHolder 9 PIN Four Feet Self Shell Type
