| Current Rating: | 0.5AMP | Contact Resistance: | 30mΩ Max |
|---|---|---|---|
| Withstand Voltage: | 500V AC/DC | Operation Temperature: | -20℃ To +85℃ |
| Contact Material: | Phosphor Bronze | Application: | Multimedia/Cameras/medical Equipment |
| High Light: | ffc flexible flat cable,shielded flat flex cable |
||

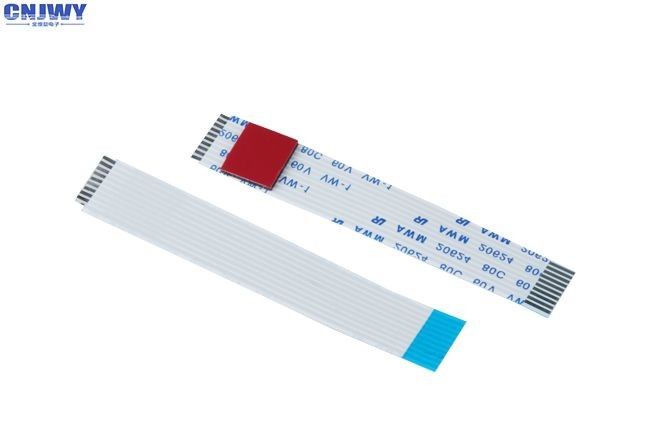

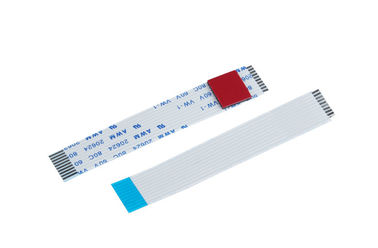

1.0 mm 20 Ways FFC Ribbon Cable B Type Blue Support With Brown Cable Base
Speicification:
| Number of Conductor | 20 Pins |
| Pitch | 1.0mm±0.10 |
| Width | 20mm±0.15 |
| Total Pitch | 19mm±0.10 |
| Margin | 1.0mm±0.15 |
| Total Length | XXmm±3mm |
| Terminal Thickness | 0.30±0.05 |
| Insertion Thickness | 0.121 ±0.02 |
| Conductor Strip Length | 4.0±1.0mm |
| Supporting Tape Length | 8.0±2.0mm |
| Conductor Thickness | 0.035±0.005 |
| Conductor Width | 0.65±0.03 |
| Slanting | ＜0.50 |
| Supporting Tape Color | Blue |
| Supporting Tape Spec | 0.225mm |
| Insulation Film Spec | 43um |
What's the Flexible Flat Cable(FFC)
Flexible flat cable is new type connection data cable, which made by PET insulation and thinner copper conductor.
They widely used in consumer electronics and more and more choose by every industry customer.
Generally, There are 0.5mm/1.0mm/1.25mm/2.0mm/2.54mm and so on.
Why Choose CNJWY
Automatic Production
More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.
Delivery on time
Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.
Make Value
Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.
Instant Response
Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.
Product Application:
FFC Cable widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
