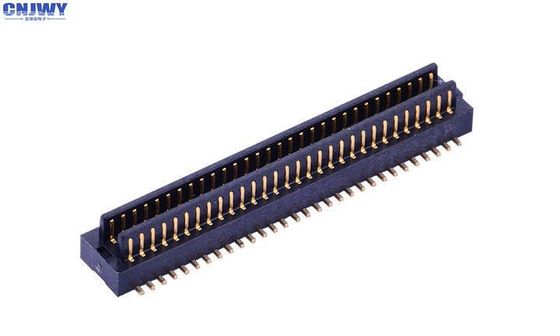

0.8 Mm Board To Board Connector , Double Slot Printed Circuit Board Connector

    • 0.8 Mm Board To Board Connector , Double Slot Printed Circuit Board Connector
    • 0.8 Mm Board To Board Connector , Double Slot Printed Circuit Board Connector
  • 0.8 Mm Board To Board Connector , Double Slot Printed Circuit Board Connector

    Product Details:

    Place of Origin: China
    Brand Name: JWY
    Certification: UL/SGS/ROHS/REACH
    Model Number: FBB8010F-XXXXXXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: negotiation
    Packaging Details: Tube/Reel packaging
    Delivery Time: 10 to 15 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 100000000PCS
    Contact Now
    Detailed Product Description
    Rated Voltage: 30V AC (RMS) /DC Voltage Resistance: 250V AC R.m.s
    Rated Current: 0.5A AC (RMS) Insulation Resistance: 500M Omega Min
    Material - Metal: Phosphor Bronze Working Temperature Range: -25º C ~ +85º C

    PCB Board To Board Connector 0.8MM Vertical Seat Double Slot LCP Material



    Details of board to board:


    Finely spaced plate to plate connectors are optimized interconnect solutions for smaller, thinner electronic consumer products. These connectors can meet the trend of miniaturization in the market. The product series has smaller pin spacing, narrower body and lower insertion height and various advantages: molding contacts provide contact on the rolling surface, which is highly reliable; it is practical, easy to insert, durable, enough space, and a nickel barrier to facilitate welding.


    Product advantages:


    1. long self calibration distance, easy assembly and socket.
    2. wide open area suitable for standard nozzle size
    3. multi point contact system can be securely connected
    4. the nickel blocking layer on the single contact can minimize the wicking problem.

    Electrical  products:



    Type Board to Board Connector
    Spacing  0.8 mm
    Material - metal  phosphor bronze
    Rated current  0.5A AC (RMS)
    Working temperature range -25º C ~ +85º C
    Contact resistance 50 mΩ Max
    Voltage resistance  250V AC r.m.s
    Contact resistance  500m Omega Max







    FAQ:

    1. Are you a Facotry?

    Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.

    2. How to get a free sample to check the quality?

    We ususlly offer within 20pcs samples, but freight should be coolected

    3. When can I get a quotation assembly?

    There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.

    4. What about the lead time for mass production?

    It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.



    Company Index:


    1.Quality policy: innovation, continuous improvement, quality first, customer satisfaction.


    2.Environmental policy: comply with environmental regulations, strive to prevent and control pollution, rationally use resources, manufacture green products, raise environmental awareness, and continuously improve the environment.


    3.Business philosophy: quality, loyalty, Co-Prosperity.


    4.Service quality: technology-oriented, customer-oriented, and advanced high-precision manufacturing process, so that we are in the leading position in the industry. In the future, we will work with you to create a better tomorrow based on our high precision manufacturing technology and high quality service.



    Product Application:



    The thin spacing board to board connector is an optimized interconnection solution, which is suitable for smaller and thinner electronic consumer products. These connectors can cope with the trend of miniaturization in the market. The product line has smaller pin spacing, narrower body and lower socket height, as well as various advantages.



    0.8 Mm Board To Board Connector , Double Slot Printed Circuit Board Connector
