CE 10.0mm Pitch Terminal Block Connector PCB Barrier 1*05P PBT With Protection Cover

CE 10.0mm Pitch Terminal Block Connector PCB Barrier 1*05P PBT With Protection Cover
CE 10.0mm Pitch Terminal Block Connector PCB Barrier 1*05P PBT With Protection Cover CE 10.0mm Pitch Terminal Block Connector PCB Barrier 1*05P PBT With Protection Cover

Large Image :  CE 10.0mm Pitch Terminal Block Connector PCB Barrier 1*05P PBT With Protection Cover

Product Details:

Place of Origin: China
Brand Name: CNJWY
Certification: UL.CE
Model Number: CBT-00-10.0

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Packaging Details: PE/BOX
Delivery Time: 1week
Payment Terms: T/T, Western Union
Supply Ability: 10000000
Detailed Product Description
Type: Barrier Terminal Block Packaging: PE/Box
Brand: CNJWY Withstand Voltage: AC4000V
Color: Black Insulation Material: PA66, UL94V-0
Temperature: -40℃~120℃ Terminal Body: BRASS
High Light:

panel mount terminal block

,

plug in terminal block

Single Row PCB Barrier Terminal Block Connector 10.0mm Pitch 1*05P PBT H=23.5mm



Product Name: PCB Barrier Terminal Block



PCB Barrier Terminal Block Connector Application:



PCB Barrier Terminal Block Connector Is Mainly used in communications, lighting, security and etc.. And the application of industry pluggable terminal is the main pan, such as frequency conversion, riot, numerical control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications for pluggable terminal industry are: insertion force should be smooth, contact resistance to be small, must be able to meet the certain life and fatigue, so higher requirements for the metal shrapnel material. This requires that product designers have certain experience in structure and material. For the fence type terminal applications: power supply, relay (especially double terminal), frequency

converter, the elevator industry (less), air conditioning.



PCB Barrier Terminal Block Connector TECHNICAL DATA:



Pitch 10.0mm
Poles 2-24P
Screw M4 Steel, Zinc plated
Pin header Brass, Tin plated
Wire cage Brass Ni plated
Housing PBT, UL94, V-0
Rated voltage 300V(UL)
Rated current 20A
Withstanding voltage AC1250V/1Min
Wire range 22-6AWG
Temperature range -40°C~+105°C
Screw Torque 13 lbf.in

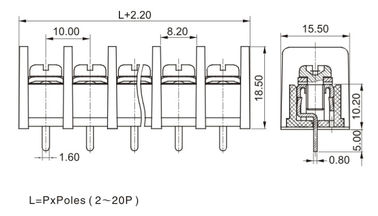

CE 10.0mm Pitch Terminal Block Connector PCB Barrier 1*05P PBT With Protection Cover 0CE 10.0mm Pitch Terminal Block Connector PCB Barrier 1*05P PBT With Protection Cover 1



CE 10.0mm Pitch Terminal Block Connector PCB Barrier 1*05P PBT With Protection Cover 2
