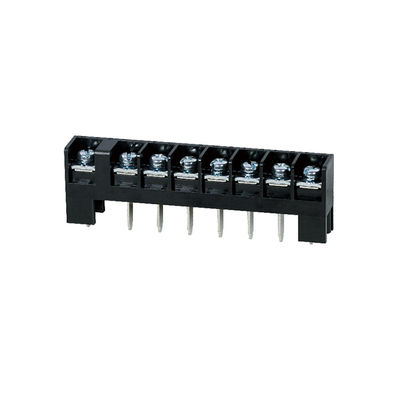

Power Supply Electrical Connector Blocks 13.5mm Pitch BRASS Terminal Body

    • Power Supply Electrical Connector Blocks 13.5mm Pitch BRASS Terminal Body
    • Power Supply Electrical Connector Blocks 13.5mm Pitch BRASS Terminal Body
  • Power Supply Electrical Connector Blocks 13.5mm Pitch BRASS Terminal Body

    Product Details:

    Place of Origin: China
    Brand Name: CNJWY
    Certification: UL.CE
    Model Number: CBT-00-135

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Packaging Details: PE/BOX
    Delivery Time: 1week
    Payment Terms: T/T, Western Union
    Supply Ability: 10000000
    Contact Now
    Detailed Product Description
    Type: Barrier Terminal Block Packaging: PE/Box
    Brand: CNJWY Withstand Voltage: AC4000V
    Color: Black Insulation Material: PBT, UL94,V-0
    Temperature: -40℃~120℃ Terminal Body: BRASS

    Power Supply Used Barrier Connector 13.5mm Pitch made by private mould customized pins available



    Product Name: PCB Barrier Terminal Block



    PCB Barrier Terminal Block Connector Application:



    PCB Barrier Terminal Block Connector Is Mainly used in communications, lighting, security and etc.. And the application of industry pluggable terminal is the main pan, such as frequency conversion, riot, numerical control panel, access controller, sensor, PLC, instrumentation, power, servo drive, the common requirements of these applications for pluggable terminal industry are: insertion force should be smooth, contact resistance to be small, must be able to meet the certain life and fatigue, so higher requirements for the metal shrapnel material. This requires that product designers have certain experience in structure and material. For the fence type terminal applications: power supply, relay (especially double terminal), frequency

    converter, the elevator industry (less), air conditioning.



    PCB Barrier Terminal Block Connector TECHNICAL DATA:



    Pitch 13.5mm
    Poles 2-24P
    Screw M5 Steel, Zinc plated
    Pin header Brass, Tin plated
    Wire cage Brass Ni plated
    Housing PBT, UL94, V-0
    Rated voltage 600V(UL)
    Rated current 30A
    Withstanding voltage AC1250V/1Min
    Wire range 26-10AWG
    Temperature range -40°C~+105°C
    Screw Torque 18 lbf.in

    Power Supply Electrical Connector Blocks 13.5mm Pitch BRASS Terminal BodyPower Supply Electrical Connector Blocks 13.5mm Pitch BRASS Terminal Body



    Power Supply Electrical Connector Blocks 13.5mm Pitch BRASS Terminal Body
