| Rated Current: | 5A | Rated Voltage: | 200V |
|---|---|---|---|
| Contact Resistance: | 5mΩ | AC.V 1min: | 1500V |
| Poles: | 7 |

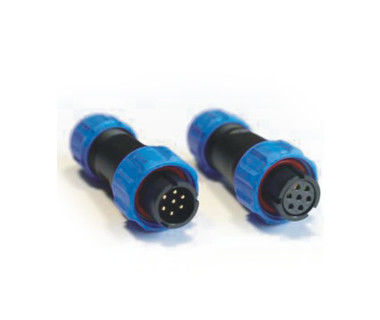

Waterproof Aviation Plug Connector GM1310 7Poles Male and Female 5A
Aviation Plug can also be called as plug-socket, widely used in numerous electrical circuits as main connectors. Therefore, improving the reliability of aviation plug is the core task for manufacturers.
A kind of detachable waterproof connector, it has the advantages of simple structure, reliable connection, and convenient installation and disassembly, etc. The product is widely used in the fields of medical equipment, testing and measuring equipment, audio-video transmission, communication electronics, military industry, aerospace, industrial control, mechanical equipment, and automobile electronics. Reliable data, signal and power transmission in harsh environments. To win the respect and trust of customers with high-quality products and services.
| Name | Waterproof Connector |
| Mode of Connection | Screw-threaded Coupling |
| Material | PC,PA66,V-0 |
| Contact Material | PPS,260℃ |
| Insulator | Gold-Plated BRASS |
| Line Diameter | 6.5-3mm,8.5-5mm |
| Mode of Cable Connection | Solder Wire |
| Waterproof Level | IP68 |
| Temperature | -25℃~+85℃,PA66=-40℃~+105℃ |
| Mechanical Life | ≥500 Mating cycles |
