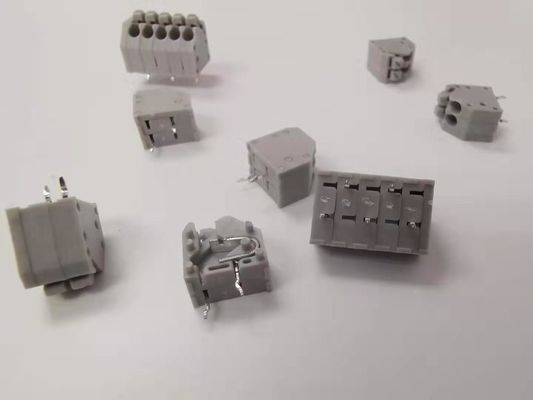

Screwless Terminal Block Button Press Pitch 3.5mm Gray Dip/180° Customized Pins

Screwless Terminal Block Button Press Pitch 3.5mm Gray Dip/180° Customized Pins

    • Screwless Terminal Block Button Press Pitch 3.5mm Gray Dip/180° Customized Pins
    • Screwless Terminal Block Button Press Pitch 3.5mm Gray Dip/180° Customized Pins
    • Screwless Terminal Block Button Press Pitch 3.5mm Gray Dip/180° Customized Pins
  • Screwless Terminal Block Button Press Pitch 3.5mm Gray Dip/180° Customized Pins

    Product Details:

    Place of Origin: China
    Brand Name: CNJWY
    Certification: UL.CE
    Model Number: CST1.5-00-3.5-05P

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Box
    Delivery Time: 7-10working days
    Payment Terms: T/T, Western Union
    Supply Ability: 10000000PCs
    Contact Now
    Detailed Product Description
    Pitch: 3.50mm Pins: 2-24pins
    Insulator Material: PA66,UL94V-0 Contact Material: Phosphor Copper, Tin Plated
    Stripping Length: 8-9mm Operating Temperature: - 33℃~+105℃

    Screwless Terminal Block Button Press Pitch3.5mm Gray DIP/180° customized pins



    Spring connection mode printed circuit board terminal, divided into heart-shaped spring connection and butterfly-shaped spring connection, with anti-vibration characteristics. The spring connecting terminal and lifting terminal can replace each other, which greatly increases the flexibility and has the characteristics of simple connection and compact structure design.



    Electrical properties



    Rated Voltage 300V
    Rated Current 5A
    Withstand Voltage AC3000V 1min
    Insulation Resistance DC500V 500MΩ
    Wire Diameter 20-16 AWG





    Screwless Terminal Block Button Press Pitch 3.5mm Gray Dip/180° Customized PinsScrewless Terminal Block Button Press Pitch 3.5mm Gray Dip/180° Customized PinsScrewless Terminal Block Button Press Pitch 3.5mm Gray Dip/180° Customized Pins

    Application: Electronic ballast, transformer, electronic appliances, communication field



    Screwless Terminal Block Button Press Pitch 3.5mm Gray Dip/180° Customized Pins
