DS-08P 25mA 16 Pin Duplex 2.00mm Stroke Pin Header Connector

DS-08P 25mA 16 Pin Duplex 2.00mm Stroke Pin Header Connector

    • DS-08P 25mA 16 Pin Duplex 2.00mm Stroke Pin Header Connector
    • DS-08P 25mA 16 Pin Duplex 2.00mm Stroke Pin Header Connector
  • DS-08P 25mA 16 Pin Duplex 2.00mm Stroke Pin Header Connector

    Product Details:

    Place of Origin: China
    Brand Name: CNJWY
    Certification: UL.CE
    Model Number: DS-XXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000
    Price: Negotiation
    Packaging Details: Tube
    Delivery Time: 1week
    Payment Terms: T/T, Western Union
    Supply Ability: 100000000
    Contact Now
    Detailed Product Description
    Material: PBT Contact: Brass
    Insulation Resistance: 1000MΩ Contact Resistance: 20mΩ
    Color: Red/Blue
    High Light:

    2.00mm Stroke Pin Header Connector

    ,

    DS-08P Pin Header Connector

    ,

    25mA 16 Pin Header Connector

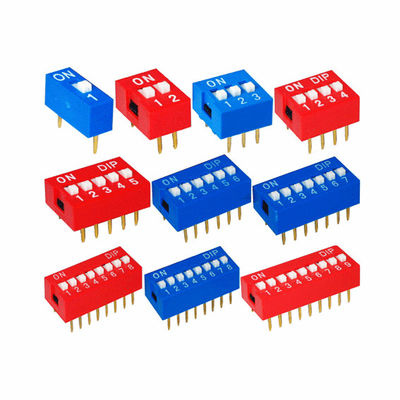

    Supply Dial Switch pin DS-08P red and blue gold plated 8-bit 16-pin duplex with long life and good quality



    Mechanical properties:


    1. Operation force: 8N(maximum)

    2. Pushbutton stroke: 2.00mm
    3. Service temperature: -20℃~+70℃

    4. Storage temperature: -40℃~+85℃



    Electrical performance:


    1. Electrical life: tested under voltage of 24VDC and current of 25mA, capable of moving back and forth for 2000 times.
    2. Rated current for infrequent switching: 100mA, 50VDC.
    3. Rated current for frequent switching: 25mA, withstand voltage: 24VDC.
    4. Contact impedance: initial value maximum 50 m Ω maximum 100 m Ω after the test
    5. Insulation resistance: the minimum 100 m Ω, 500 VDC.

    6. Compressive strength: 500VAC/1 min
    7. Inter-pole capacitance: Max. 5pF

    8. Loop: single contact single selection



    Welding and cleaning process:


    1. Make sure the switch is in the "off" position during all operations.
    2. Hand welding: Use 30 watt soldering iron to control the temperature at 320℃, and the welding time is about 2 seconds.
    3. Wave soldering: The recommended soldering temperature is 250+5℃ for 3-5 seconds.
    4. Cleaning process: Ultrasonic wave is used for cleaning, which can give better results;
    When using steam cleaning, the temperature should not exceed 51℃.
