Pitch 2.54mm H5.0mm Centipede Feet Male Header Connector

Pitch 2.54mm H5.0mm Centipede Feet Male Header Connector

    • Pitch 2.54mm H5.0mm Centipede Feet Male Header Connector
    • Pitch 2.54mm H5.0mm Centipede Feet Male Header Connector
  • Pitch 2.54mm H5.0mm Centipede Feet Male Header Connector

    Product Details:

    Place of Origin: China
    Brand Name: CNJWY
    Certification: UL.CE
    Model Number: PH254-XXXXXXX-B1B

    Payment & Shipping Terms:

    Minimum Order Quantity: 10000
    Price: Negotiation
    Packaging Details: PE/BOX
    Delivery Time: 1week
    Payment Terms: T/T, Western Union
    Supply Ability: 1000000000
    Contact Now
    Detailed Product Description
    Material: PA6T Contact: Brass
    Insulation Resistance: 1000MΩ Min Contact Resistance: 20mΩ Max
    Operating Temperature: -40℃~+105℃ Color: Black
    Pin: 40 Pitch: 2.54
    High Light:

    Centipede Feet Male Header Connector

    ,

    Pitch 2.54mm Male Header Connector

    ,

    H5.0mm Single Row Header Connector

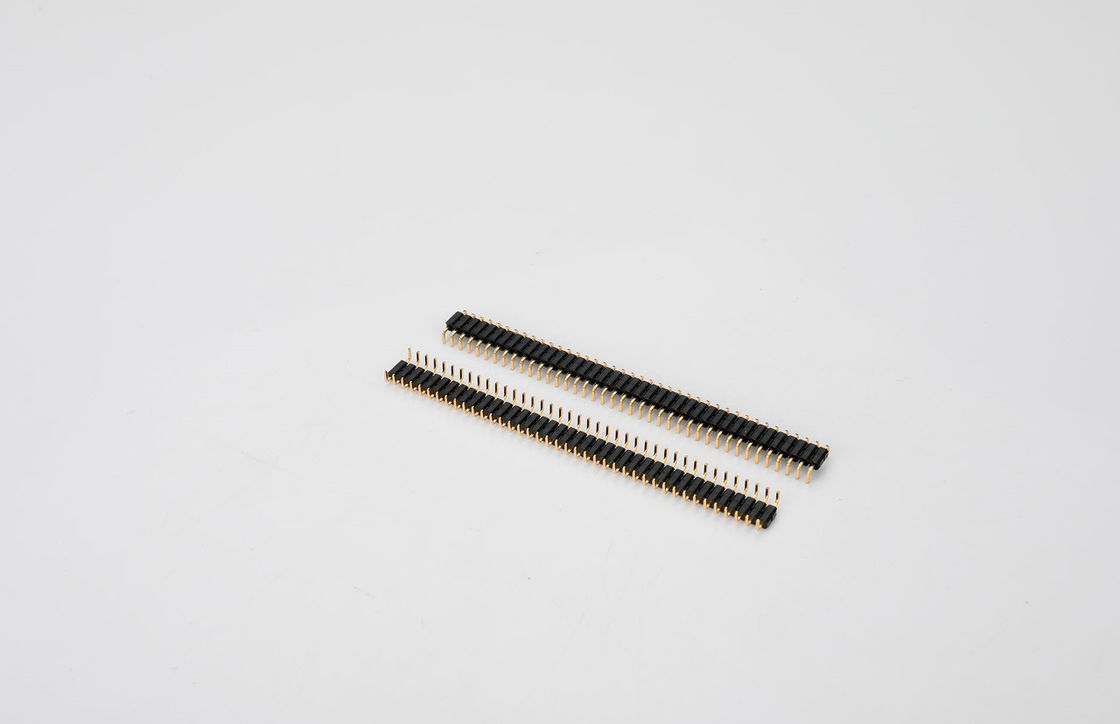

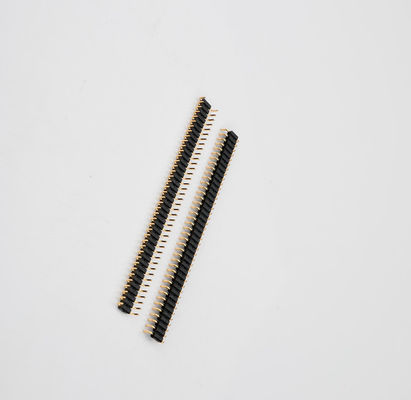

    Pitch 2.54mm H=5.0mm Pin Header, Single Row Centipede Feet Type Customized service available​



    Centipede feet Pin Header connector is an unusual one. The general plastic material is PA6T, which can be made into a single row and double row. The particularity of this row bus lies in that the span of welding feet is twice as long as the distance between welding feet. As shown in the figure, the distance between welding feet of this 2.54m-spaced centipede row bus is 7.62mm.



    Why Choose CNJWY:



    1). Research and Development Capability:

    Strong research and development capability on product designing and mold development makes CNJWY able to evaluate the new product, which could help clients save the time cost.



    2). OEM/ODM Producing

    CNJWY has our own assembly lines from electroplating, stamping, moulding, injection and packaging.



    3). Quality Guarantee

    Strictly following the demands of ISO9001-2015, CNJWY is able to produce products of the highest quality.



    4). Competitive Price

    With more than 10 years of producing experience, CNJWY is always specializing in improving production capacity. Competitiveness provides a competitive price for valued customers.







    Product Application:



    Pin header connectors widely used in different industries such as automotive, medical equipment, computer, and so on. as below image is application scenarios. image is a limitation, for more detail you can directly contact our sales team







    Pitch 2.54mm H5.0mm Centipede Feet Male Header Connector 0
