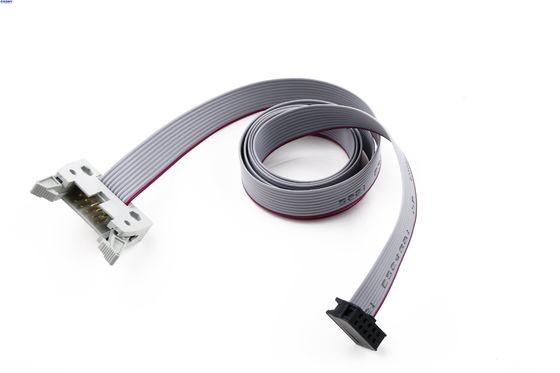

2 * 5 Pins IDC Ribbon Cable Assemblies , 2.54 Mm Pitch Ribbon Cable PVC Material

    • 2 * 5 Pins IDC Ribbon Cable Assemblies , 2.54 Mm Pitch Ribbon Cable  PVC Material
    • 2 * 5 Pins IDC Ribbon Cable Assemblies , 2.54 Mm Pitch Ribbon Cable  PVC Material
    • 2 * 5 Pins IDC Ribbon Cable Assemblies , 2.54 Mm Pitch Ribbon Cable  PVC Material
    • 2 * 5 Pins IDC Ribbon Cable Assemblies , 2.54 Mm Pitch Ribbon Cable  PVC Material
  • 2 * 5 Pins IDC Ribbon Cable Assemblies , 2.54 Mm Pitch Ribbon Cable  PVC Material

    Product Details:

    Place of Origin: China
    Brand Name: JWY
    Certification: UL/SGS/RoHs
    Model Number: CA254EJ-XXXXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: Negotiation
    Packaging Details: PE Bag
    Delivery Time: 7 Working days
    Payment Terms: T/T, Western Union
    Supply Ability: 10000PCS Per day
    Contact Now
    Detailed Product Description
    Connector: IDC Ejector Header Gray Pitch: 2.54mm
    Cable: UL 2651 28AWG(7/0.12) Length: Be Customized
    Style: Wire To Board

    2*05 Pins IDC / IDC Ejector Header Flat Ribbon Cable Assembly PVC Material



    Quick Details:



    Connector 1 IDC Connector/Rectangular Connector
    Connector 2 Ejector IDC Connector/Rectangular Connector
    Color Black/Gray
    Pin available 06 Ways to 64 Ways
    Cable available 06 Ways to 64 Ways
    Style  Wire to board
    Length Be customized
    Testing 100% Open & Short Test
    Crimp Orientation Same Orientation(First Pin is Red Line)
    Crimp Tools Semi-Automatic Machine
    Certificate UL Authentication
    Equivalent Brand TE Connectivity/AMP/FCI
    Lead time 7 working days
    Packaging Single PE Bag
    Service One-stop solution
    Shipping method Fedex/DHL/UPS/TNT or Specify Forwarder



    What is the flat ribbon cable assembly



    Ribbon Cable Assemblies,IDC, compliant with RoHs,could be customized,1.0mm,1.27mm,2.54mm pitch all available. They are often used for connections to PCBs and for links either within equipment or externally.Ribbon cables have the best ability both in compactness and manageability. We could also provide all kinds of types needed,such as standard grey, color-coded (rainbow) Ribbon in laminated or edge boded form and specials such as twisted pair (twist-n-flat), round jacketed (round-n-flat) and screened ribbon cables.More and more types of connectors with bigger ranges are available now,including standard IDC sockets, D-types, half-pitch D-types, Centronics, Half-pitch Centronics, plus PCB Dual Inline, card-edge and transition connectors.



    How to distinguish cable direction



    1). Same direction

    Both bump at the same way.

    2). Opposite direction

    Both bump at the oppsite way.

    3). Up and dowm direction

    Both bump at the different way. For the details,you can check as below image description.

    2 * 5 Pins IDC Ribbon Cable Assemblies , 2.54 Mm Pitch Ribbon Cable  PVC Material



    Why Choose CNJWY



    Research and Development Capability:

    Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.



    OEM/ODM Producing

    CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.



    Quality Guarantee

    Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.



    Competitive Price

    More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.



    FAQ:



    1. Are you a Facotry?

    Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.

    2. How to get a free sample to check the quality?

    We ususlly offer within 20pcs samples, but freight should be coolected

    3. When can I get a quotation of cable assembly?

    There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.

    4. What about the lead time for mass production?

    It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.



    Scope of Application:



    Flat ribbon cable assembly widely used in different industry such as automotive, medical equipment, outdoor led screen and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team



    2 * 5 Pins IDC Ribbon Cable Assemblies , 2.54 Mm Pitch Ribbon Cable  PVC Material
