2 Mm Pitch Female Connector , Through Hole Plastic Right Angle Female Header

2 Mm Pitch Female Connector , Through Hole Plastic Right Angle Female Header

  • 2 Mm Pitch Female Connector , Through Hole Plastic Right Angle Female Header
  • 2 Mm Pitch Female Connector , Through Hole Plastic Right Angle Female Header
2 Mm Pitch Female Connector , Through Hole Plastic Right Angle Female Header
Product Details:
Place of Origin: China
Brand Name: JWY
Certification: UL/SGS/RoHs/REACH
Model Number: HT200-XXXXXX
Payment & Shipping Terms:
Minimum Order Quantity: 2Kpcs
Price: Negotiation
Packaging Details: PE/Tray/Tube/Tape/Reel Packaging
Delivery Time: 7 to 15 working days
Payment Terms: T/T & Western Union
Supply Ability: 100000pcs per day
Contact Now
Detailed Product Description
Contact Resistance: 20mΩ Max Withstand Voltage: 500V AC/DC
Operation Temperature: -40℃ To +105℃ Contact Material: Phosphor Bronze
Pitch: 2.00mm Current Rating: 1.5AMP
High Light:

right angle female header

,

2 mm pitch female connector

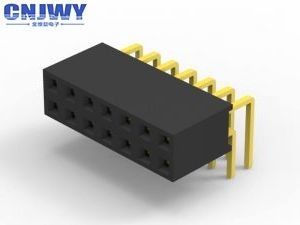

2.00 mm Female Header Connector Right Angle Through Hole Plastic Height 3.4mm

What is a PCB Connector?

Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.



PCB Connector orientations

The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:

  • Parallel or mezzanine – both connectors are vertical orientation;
  • 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
  • 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors

PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.



Specifications:

Products Name Female Header/PCB Connector
Pitch 2.00mm(0.1'')
Current Rating 2.0 AMP
Contact Resistance 20 mΩ Max
Withstand Voltage 500 V AC/DC
Insulation Resistance 1000 MΩ Min
Operation Temperature -40℃ to 105℃
Contact Material Coppy Alloy
Contact Plating Au or Sn Over Ni
Insulator Material PA6T+30 GF(UL94-V0)
Mounting Type Through Hole
Termination Solder
Number of Row Dual
Plastic Height 3.4 mm
Contact Finish Gold Flash
Pins available 4 Pins to 40 Pins
Color Black
Packaging Tube



Why Choose CNJWY:



Automatic Production

More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.

Delivery on time

Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.

Make Value

Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.

Instant Response

Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time





Product Application:



Female header connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
