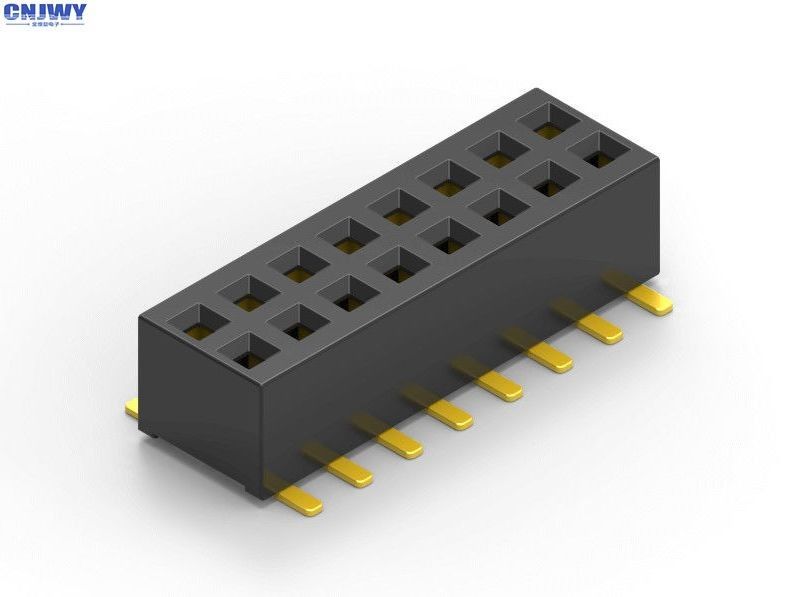

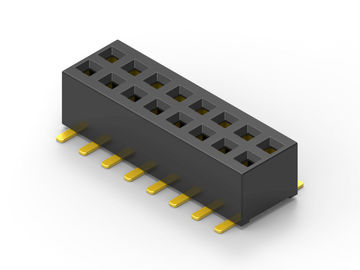

SMT Female Header Connector 1.0 Mm Pitch Dual Row For Medical Equipment

SMT Female Header Connector 1.0 Mm Pitch Dual Row For Medical Equipment

    • SMT Female Header Connector 1.0 Mm Pitch Dual Row For Medical Equipment
    • SMT Female Header Connector 1.0 Mm Pitch Dual Row For Medical Equipment
  • SMT Female Header Connector 1.0 Mm Pitch Dual Row For Medical Equipment

    Product Details:

    Place of Origin: China
    Brand Name: JWY
    Certification: UL/SGS/RoHs/REACH
    Model Number: HT100-XXXXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 2Kpcs
    Price: Negotiation
    Packaging Details: Tray/Tube/Tape/Reel Packaging
    Delivery Time: 7 to 15 working days
    Payment Terms: T/T & Western Union
    Supply Ability: 100000pcs per day
    Detailed Product Description
    Pitch: 1.0mm Port: Shenzhen
    Contact Plating: Gold Over Ni Number Of Row: Dual Row
    Application: Medical Equipment Current Rating: 1.0AMP

    1.0mm Female Header Connector Dual Row SMT Type Applied in Medical Equipment

    Specifications:



    1. Pitch:1.00mm

    2. Connector Name: PCB Connector/Female Header

    3. Insulation Material:PA9T UL 94-V0

    4. Contact Material: Phosphor Bronze

    5: Mounting Type: Through Hole

    6: Number of Row: Dual Row

    7: Contact Finish: Gold or Tin Plated

    8: Termination: Solder

    9: Insulation Color: Black or be customized

    10: Current Rating:1.0A

    11: Withstand Voltage:500V AC/DC

    12: Contact Resistance:20mΩ Max

    13: Contact Shape: Square Pin

    14: Pin Length: Customization

    15. Insulation Height:Customization

    16. Operating Temperature:-40℃ to 105℃

    17: Pin Available:2Pins to 80Pins

    18. Function:Signal Transmission



    Our Services:



    1. We value our customers’ trust in sourcing for the most suitable components for their requirements.

    2. We only offer what is best for our customers, knowing each customer is unique.

    3. Our fast, innovative service will ensure that our customers’ needs are answered

    4. We value every customer, no matter small or medium volume orders.

    5. Our business is not just about components supply, it’s about delivering promises.

    6. Our aim is make sourcing connector easy for you

    7. We'll reply your inquiry within 24hours,Online Inquiry is Welcome.

    8. We provide OEM,ODM services

    9. 20pcs free samples, For repeat order customer, We'll provide more than 20pcs samples for prototype project if necessary.

    10. Your one-stop source for components solutions.



    How to Packing:



    We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
    1. Tray Packing, suitable for manual assembly.
    2. Tube Packing, suitable for manual assembly.
    3. Reel Packing with tape, suitable for automatic machine producing
    4. Reel Packing with Cap, suitable for automatic machine producing



    Product Application:

    Generally, female headers with suited pin headers are used to finish created modules in electronic industry.As below you can find some of scope of application.

    SMT Female Header Connector 1.0 Mm Pitch Dual Row For Medical Equipment
