Right Angle 25 Pin D Type Connector , 90 Degree Plug In 9 Pin D Type Female Connector

    • Right Angle 25 Pin D Type Connector , 90 Degree Plug In 9 Pin D Type Female Connector
    • Right Angle 25 Pin D Type Connector , 90 Degree Plug In 9 Pin D Type Female Connector
  • Right Angle 25 Pin D Type Connector , 90 Degree Plug In 9 Pin D Type Female Connector

    Product Details:

    Place of Origin: China
    Brand Name: JWY
    Certification: UL/SGS/ROHS/REACH
    Model Number: DBC25-XXXXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: negotiation
    Packaging Details: Plastic box packing
    Delivery Time: 7 to 15 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 10000000PCS
    Contact Now
    Detailed Product Description
    Rated Current: 3.0A AC (RMS) Rated Voltage: 250V AC (RMS) /DC
    Contact Resistance: 25 M Omega Max Insulation Resistance: 1000M Omega Min
    Voltage Resistance: 500V AC R.m.s Working Temperature Range: -55℃~+105℃

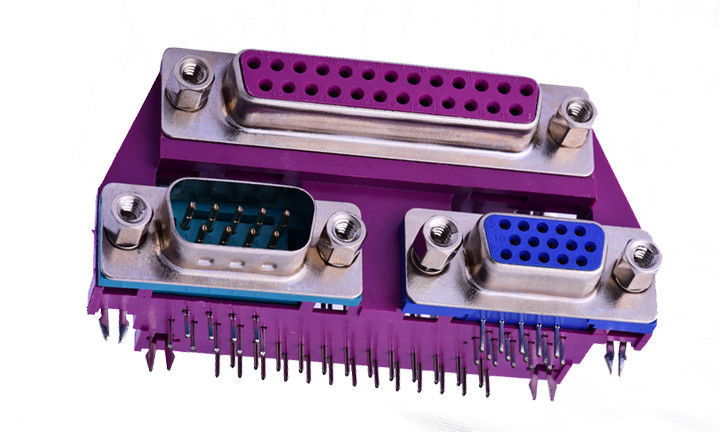

    VGA Combination 25 Mother Seat 9 Seat 15 Mother Seat 90 degree plug-in,D-Sub Connector

    Specifications:

    1. Rated current 3.0A AC (RMS)

    2. Rated voltage 250V AC (RMS) /DC

    3. Contact resistance 25 m Omega Max

    4. Insulation resistance 1000M Omega Min

    5. Voltage resistance 500V AC r.m.s

    6. Working temperature range -55℃~+105 Right Angle 25 Pin D Type Connector , 90 Degree Plug In 9 Pin D Type Female Connector

    7. Material - resin PBT UL94V-0



    Our Service:


    1. Lead customer choose a best connection sulotion way.

    2. 20pcs free sample. Support more than 20pcs sample for old customer.

    3. OEM/ODM service. We have a strong R&D team to support connector design.

    4. Quickly response, email reply within 12hours,online inquiry is welcome.

    5: Serivce attitude:our business is not just connector supply, it's about deliverying promises.



    Why Choose CNJWY:



    1. High-Quality Guarantee

    CNJWY has been focusing on improving the Quality Control Systems, aiming at providing high-quality products that fit ISO9001 Certificate for years.



    2.Competitive Price

    We have a whole set production process which include electroplating,stamping,injection molding,assemly to ensure our competetive price.



    3. Customized Packaging

    All the products are available for customized packaging according to your demand.



    4. Fast Delivery

    Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.



    Product Application:

    D-SUB products can be divided into welding wire series, male head head series, with rivets, they have 9, 15, 25, 37 and 50 needle varieties.Products can also be divided into welding line series, male head head series, with rivets, etc..The application area can refer to the following figure:
