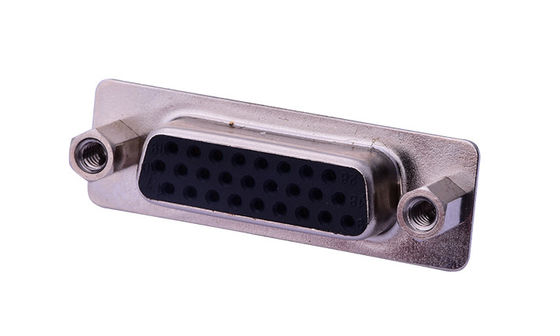

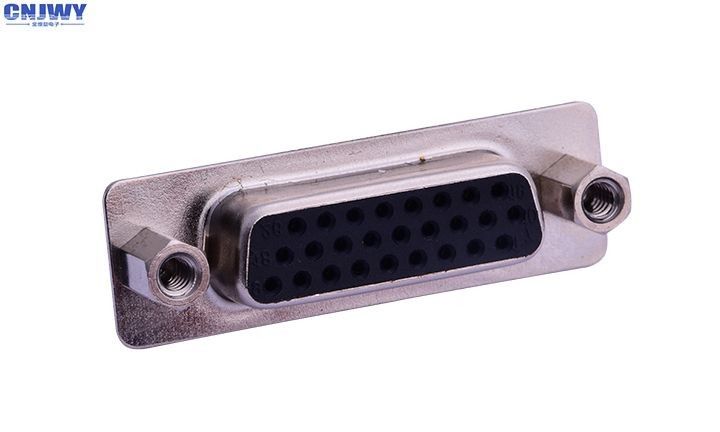

Welding Line Type D Sub Connector 26PIN Three Row 500V Voltage Resistance

    • Welding Line Type D Sub Connector 26PIN Three Row 500V Voltage Resistance
    • Welding Line Type D Sub Connector 26PIN Three Row 500V Voltage Resistance
  • Welding Line Type D Sub Connector 26PIN Three Row 500V Voltage Resistance

    Product Details:

    Place of Origin: China
    Brand Name: JWY
    Certification: UL/SGS/ROHS/REACH
    Model Number: DBC25-XXXXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: negotiation
    Packaging Details: Plastic box packing
    Delivery Time: 7 to 15 working days
    Payment Terms: T/T, Western Union
    Supply Ability: 10000000PCS
    Contact Now
    Detailed Product Description
    Operating Temperature Range: -55º C ~ +105º C Contact Resistance: 25 M Omega Max
    Rated Current: 3.0A AC (RMS) Insulation Resistance: 1000M Omega Min
    Voltage Resistance: 500V AC R.m.s

    D-SUB 25 Parent Connector Welding Line Type Black 26PIN Three Row



    The main types of electrical connectors are:



    Their supporting fields include transportation, communication, network, IT, medical treatment, household appliances and so on. The rapid development of the technical level of the products in the supporting field and the rapid growth of the market are the powerful traction of the development of connector technology. Up to now, the connector has developed into a series of products with complete variety of products, rich variety specifications, various structural types, professional direction subdivision, obvious industry characteristics and standard system specification.



    Specifications:



    Model DB25 mother seat
    Rated current 3.0A AC (RMS)
    Color black
    Type connection seat / wiring board
    Material - resin PBT UL94V-0
    Interface type D-SUB (VGA)
    Rated voltage 250V AC (RMS) /DC
    Double Three row
    Voltage resistance 500V AC r.m.s
    Contact resistance 25 m Omega Max
    Insulation resistance 1000M Omega Min
    Working temperature range -55 ℃~+105℃
    Material - metal copper alloy
    Material-Electroplating at Contact gold



    Our Service:



    1. the series of product specifications are complete, but also tailor-made.
    2. import equipment and high degree of automation timely delivery. Usually 7-10 days.
    3. strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL-certified.
    4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive



    Our Advantages:



    1. the product specifications are complete and can be customized.



    2. imported equipment and high degree of automation, prompt delivery. 7-10 days generally.



    3. strictly enforce the ISO9000 and ERP system, and the materials supplied are strictly controlled according to the quality standard. The product is certified by UL.



    4. 15-20 sets of samples are offered free of charge, with high price performance ratio. The same quality unit price is very competitive.



    D-SUB (welding line) type:
    1 common side, 1 mother end, 0.76 common end, 0.76 mother end.The application site can be referred to as the following combination.



    Welding Line Type D Sub Connector 26PIN Three Row 500V Voltage Resistance
