ShenZhen CNJWY Electronics Co.,Ltd.
Sales & Support:
Product Details:
Payment & Shipping Terms:
|
| Connector: | 2.54 IDC Socket | Number Of Pins: | 16 Pins |
|---|---|---|---|
| Connector Plated: | Gold Over Nickel | Cable: | UL 2651 28AWG |
| Cable Color: | Gray | Conductor Dimension: | 7/0.12 |
| High Light: | idc ribbon cable assembly,shielded flat ribbon cable |
||

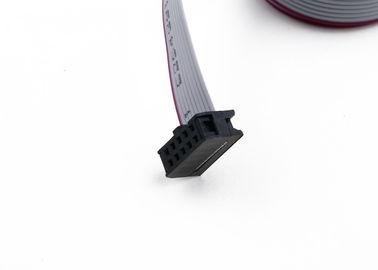

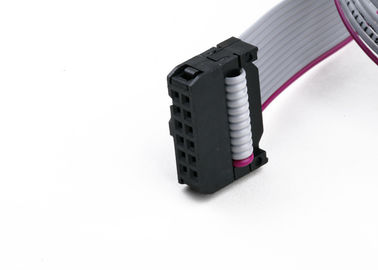

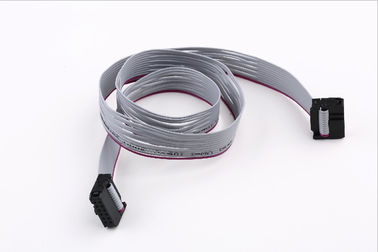

Both Side Crimping 20 Pins Black IDC Socket Flat Ribbon Cable Assembly Black
Quick Details:
| Connector | IDC Socket/Rectangular Connector |
| Pitch | 2.54mm(0.1'') |
| Terminal Finish | Gold over Ni |
| Insulation Material | PBT+30% GF(UL94V-0) |
| Cable | UL2651 28AWG |
| Cable Pitch | 1.27mm(0.05'') |
| Insulation Material | PVC |
| Conductor Dimension | 7/0.12 mm |
| With Relief | Yes |
| Cable Direction | Cable Red Line with 1th Pin |
| Length | Be customized |
| Inspection | 100% open & short test |
| Shielding | Unshielded |
| Features | Polarizing Key |
| Packaging | PE Bag or Specify Packaging |
| Delivery day | 7 working days |
Why Choose CNJWY
Automatic Production
More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.
Delivery on time
Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.
Make Value
Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.
Instant Response
Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.
FAQ:
1. Do you have any of certification
Yes, Our cable assembly has UL certification
2. How to get a free sample to check the quality?
We ensure every of cables 100% tested, If any electrical measuring is failed,We'll arrange replacement and undertake all the costs.
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
Scope of Application:
Flat ribbon cable assembly widely used in different industry such as automotive, medical equipment, outdoor led screen and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
