|Place of Origin:||China|
|Minimum Order Quantity:||2Kpcs|
|Packaging Details:||PE/Tray/Tube/Tape/Reel Packing|
|Delivery Time:||7 to 15 working days|
|Payment Terms:||T/T & Western Union|
|Supply Ability:||100000pcs per day|
|Current Rating:||2.0 AMP||Contact Resistance:||20mΩ Max|
|Withstand Voltage:||500V AC/DC||Insulation Resistance::||1000MΩ Min|
|Operation Temperature::||-40℃ To +105℃||Contact Material:||Phosphor Bronze|
|Contact Plating:||Au Or Sn Over Ni||Insulator Material:||PA6T/PA9T/PBT+30% GF(UL94V-0)|
surface mount wire to board connector,
wire to board header

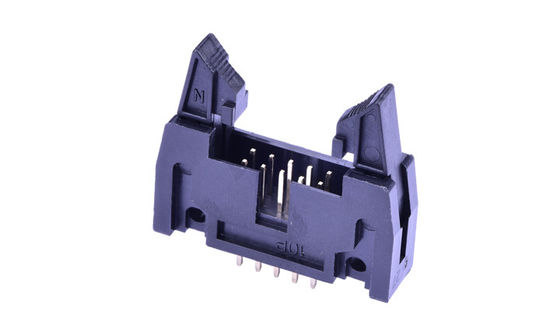

2.00 MM Ejector Header PCB Wire To Board Connectors Black Insulation
|Products Name||PCB Wire to Board Connector/Ejector Header|
|Contact Type||Male Pin|
|Number of Row||Dual|
|Number of Positions Loaded||All|
|Style||Wire to Board|
|Mounting Type||Through Hole|
|Fastening Type||Latch Lock/Eject Hooks|
|Operating Temperature||-40°C to 105°C|
What is a PCB Connector?
Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.
PCB Connector orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:
Other names for PCB Connectors
PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.
Why Choose CNJWY
More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.
Delivery on time
Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.
Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.
Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.
1. Are you a Facotry?
Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.
2. How to get a free sample to check the quality?
We ususlly offer within 20pcs samples, but freight should be coolected
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
Scope of application:
PCB Wire to Board Connectors widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
