|Current Rating:||1.0 AMP||ContacContact Resistancet:||20mΩ Max|
|Withstand Voltage:||500V AC/DC||Insulation Resistance:||1000MΩ Min|
|Operation Temperature:||-40℃ To +105℃||Contact Material:||Brass|
|Contact Plating:||Au Or Sn Over Ni||Insulator Material:||LCP+30% GF(UL94V-0)|
surface mount pin header,
right angle pin connector

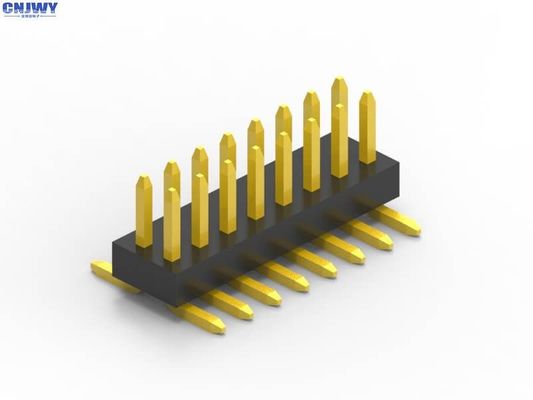

SMD Type Male Pin Header Connector With Gold Dual Row Terminal With Gold Flash
2. Connector Name: PCB Connector/Pin Header
3. Insulation Material:LCP UL 94-V0
4. Contact Material: Copper Alloy
5: Mounting Type: SMT/SMD
6: Number of Row: Dual
7: Contact Finish: Gold Over Nickel
8: Termination: Solder
9: Color Standard (Black) or be customized
10: Current Rating:1.0 AMP
m11: Withstand Voltage:500 V AC/DC
12: Contact Resistance:20mΩ Max
13: Contact Shape: Square Pin
14: Pin Length: Customization
15: Pin Available:2Pins to 40Pins
What's the Pin Header
1. Pin header is called universal connector. Based on different designs for PCB,they choose different pitch connectors to meet.
2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.
3. Generally, pin headers with suited female headers are used to finish created modules in electronic industry.
4. Regarding pin header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.
5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.
