Male 16 Pin Header Connector 2.54 Mm Pitch , Double Plastic Square Right Angle Pin Header

China ShenZhen JWY Electronic Co.,Ltd certification
China ShenZhen JWY Electronic Co.,Ltd certification
Their products are nice with decent prices.And also their supply ability is amazing,which is able to make lead-time so impressive.

—— Mr.Formosa

A variety of products with high quality and amazing prices,and also fast response with all actions are the services what they are doing:)Keep going guys!

—— Mr.Rajiv

Particular customized service is what drives me to buy from them.Thanks guys,we would do more business in the coming future for sure.

—— Mr.Michael

I'm Online Chat Now

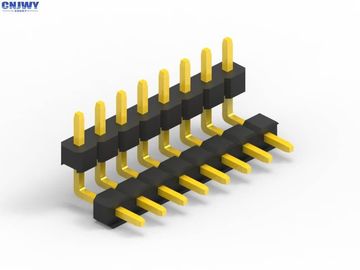

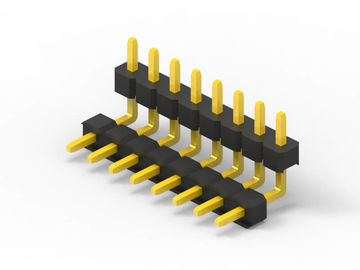

Male 16 Pin Header Connector 2.54 Mm Pitch , Double Plastic Square Right Angle Pin Header

Male 16 Pin Header Connector 2.54 Mm Pitch , Double Plastic Square Right Angle Pin Header
Male 16 Pin Header Connector 2.54 Mm Pitch , Double Plastic Square Right Angle Pin Header Male 16 Pin Header Connector 2.54 Mm Pitch , Double Plastic Square Right Angle Pin Header

Large Image :  Male 16 Pin Header Connector 2.54 Mm Pitch , Double Plastic Square Right Angle Pin Header

Product Details:

Place of Origin: China
Brand Name: JWY
Certification: UL/SGS/RoHs/REACH
Model Number: ST254-XXXXXX

Payment & Shipping Terms:

Minimum Order Quantity: 2Kpcs
Price: Negotiation
Packaging Details: PE/Tray/Tube/Tape/Reel Packaging
Delivery Time: 7 to 15 working days
Payment Terms: T/T
Supply Ability: 100000pcs per day
Detailed Product Description
Current Rating: 3.0AMP ContacContact Resistancet: 20mΩ Max
Withstand Voltage: 500V AC/DC Insulation Resistance: 1000MΩ Min
Gender: Male Insulator Material: PA6T UL-94V-0
High Light:

circuit board pin connectors

,

surface mount pin header

2.54mm Male Pin Header Connector Double Black Plastic Square Pin Right Angle



What is a PCB Connector?



Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.



PCB Connector orientations



The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:

  • Parallel or mezzanine – both connectors are vertical orientation;
  • 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
  • 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors



PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.



Specifications:



Connector Type  Header
Contact Type Male Pin
Pitch 2.54mm(0.1'')
Pins available 2Pins to 100Pins
Connector Name PCB Connector
Mounting Type Through Hole
Number of Row 1
Termination Solder
Contact Finish Gold Over Nickel
Operation Temperature -40℃ to +105℃
Insulation Material PA6T UL94V-0
Current Rating 3.0A
Withstand Voltage 500V AC/DC
Insulation Color Black
Contact Material Copper Alloy



Why Choose CNJWY:



1. 20pcs free samples, For repeat order customer, We'll provide more than 20pcs samples for prototype project if necessary.

2. We value our customers’ trust in sourcing for the most suitable components for their requirements

3. Our aim is make sourcing connector easy for you

4. CONNJWY has come a long way over the years in delivering what we promise and is proud of what we have achieved so far.

5. Your one-stop source for components solutions.



Product Application:



Male pin header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
