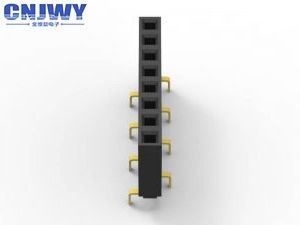

PCB Break Away Female Headers , 2.54 Mm Female Header Contact Resistance 20mΩ Max

PCB Break Away Female Headers , 2.54 Mm Female Header Contact Resistance 20mΩ Max

  • PCB Break Away Female Headers , 2.54 Mm Female Header Contact Resistance 20mΩ Max
  • PCB Break Away Female Headers , 2.54 Mm Female Header Contact Resistance 20mΩ Max
PCB Break Away Female Headers , 2.54 Mm Female Header Contact Resistance 20mΩ Max
Product Details:
Place of Origin: China
Brand Name: JWY
Certification: UL/SGS/RoHs/REACH
Model Number: HT254-XXXXXX
Payment & Shipping Terms:
Minimum Order Quantity: 2Kpcs
Price: Negotiation
Packaging Details: PE/Tray/Tube/Tape/Reel Packaging
Delivery Time: 7 to 15 working days
Payment Terms: T/T & Western Union
Supply Ability: 100000pcs per day
Contact Now
Detailed Product Description
Contact Resistance: 20mΩ Max Withstand Voltage: 500V AC/DC
Insulation Resistance: 1000MΩ Min Operation Temperature: -40℃ To +105℃
Contact Plating:: Au Or Sn Over Ni Current Rating: 3AMP
Highlight:

right angle female header

,

2 mm pitch female connector

Phosphor Bronze Provision Breaked PCB Header Connector 2.54mm Black Insulation



Specifications:



1. Connector Type:Female Header

2. Contact Type:Female Socket

3. Style:Board to Board

4. Number of Positions:2Pin to 40Pin available

5. Pitch:2.54mm

6. Number of Row:Single

7. Mounting Type:Through Hole

8. Terminlation:Solder

9. Fastening Type:Push-Pull

10. Contact Finish:Gold over Nickel

11. Contact Finish Thickness:Flash

12. Insulation Color:Black or customization

13. Insulation Height:8.5mm

14. Operating Temperature:-40℃ to 105℃

15. Contact Shape:Square



Why Choose CNJWY:



1. We value our customers’ trust in sourcing for the most suitable components for their requirements

2. We only offer what is best for our customers, knowing each customer is unique.

3. Our fast, innovative service will ensure that our customers’ needs are answered.

4. We value every customer, no matter small or medium volume orders.

5. Our business is not just about components supply, it’s about delivering promises.

6. Our aim is make sourcing connector easy for you.

7. We'll reply your inquiry within 24hours,Online Inquiry is Welcome.

8. We provide OEM,ODM service.



How to Packing



We provided flexible packaging method to meet different customer requirments.For Female Header connector, there is four method packaging for your reference.

1. Tray Packing, suitable for manual assembly.

2. Tube Packing,suitable for manual assembly.



3. Reel Packing with tape,suitable for automative machine producing

4. Reel Packing with Cap,suitable for automative machine producing



Product Application:



Female Header Connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
