|Current Rating:||0.5AMP||Contact Resistance:||30mΩ Max|
|Withstand Voltage:||500V AC/DC||Insulation Resistance:||1000MΩ Min|
|Operation Temperature:||-20℃ To +85℃||Contact Material:||Phosphor Bronze|
ffc flexible flat cable,
shielded flat flex cable

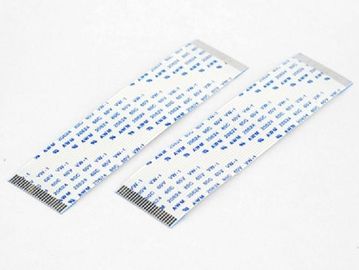

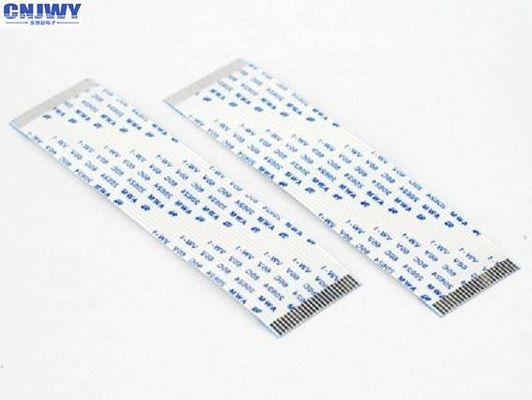

1.0 mm 60Pins FFC Ribbon Cable A Type TPE Insulator Blue Supporting Tape
FFC flat line property:
|type||1.0mm 60Pins FFC Ribbon cable|
|Operation Temperature||-20℃ to +85℃|
|Withstand Voltage||500V AC/DC|
|Contact Resistance||30mΩ Max|
|Contact Material||Phosphor Bronze|
|Insulation Resistance||1000MΩ Min|
The function of FFC soft wiring is not to transmit current and signals, but to bring great convenience to life and make life more beautiful. Therefore, we need to discuss the excellent performance and structural characteristics of FFC soft wiring in more depth. The FFC line can move, bend, and twist without damaging the wire. It can follow different shapes and special package sizes. Its only limitation is the problem of volume space. Since it can withstand millions of dynamic bending, FFC rows can be well adapted to continuous or periodic movement of the internal system, become part of the product function.
FFC alignment connector category:
1. bar type FFC line connector
The number of leads for the column FFC row connector is generally less than dozens, and is suitable for the circuit connection between the printed circuit board and the device in the device.
2. print circuit FFC wiring connector
The printed circuit FFC wiring connector is mainly used to connect printed circuit boards in electrical or electronic equipment.
3. ribbon cable FFC cable connector
The socket of the FFC cable cable connector is soldered directly on the printed circuit board. The plug and the ribbon cable are perforated and pressed, which can be completed at one time. The contact is reliable and easy to use. It is suitable for the connection of instrument circuit.
1. the series of product specifications are complete, but also tailor-made.
2. import equipment and high degree of automation timely delivery. Usually 7-10 days.
3. strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL-certified.
4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive
5. the quality is safe and reliable, the price is competitive.
FFC soft line application field:
Very extensive, intelligent furniture, car-borne electronics, security equipment, medical equipment and so on, a wide range of applications derived from its own unique characteristics
(small in volume and lighter in mass. In order to adapt to the characteristics of thin, light and tiny electronic products in the future, FFC will need thinner film and conductor under 30um to greatly reduce product quality.
