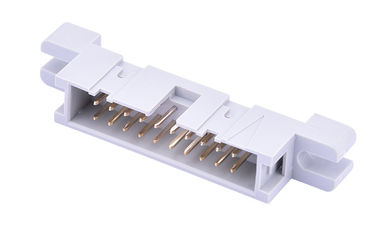

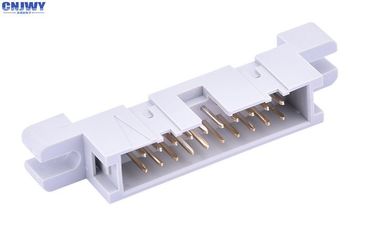

2.54 Pitch IDC Box Header Connector Rectangular Gray Insulator PBT

2.54 Pitch IDC Box Header Connector Rectangular Gray Insulator PBT
2.54 Pitch IDC Box Header Connector Rectangular Gray Insulator PBT 2.54 Pitch IDC Box Header Connector Rectangular Gray Insulator PBT

Large Image :  2.54 Pitch IDC Box Header Connector Rectangular Gray Insulator PBT

Product Details:

Place of Origin: China
Brand Name: JWY
Certification: UL/SGS/RoHs/REACH
Model Number: BX254-XXXXXX

Payment & Shipping Terms:

Minimum Order Quantity: 2Kpcs
Price: Negotiation
Packaging Details: Tray/Tube/Tape/Reel Packing
Delivery Time: 7 to 15 working days
Payment Terms: T/T & Western Union
Supply Ability: 100000pcs per day
Detailed Product Description
Current Rating: 3.0AMP Contact Resistance: 20mΩ Max
Withstand Voltage: 500V AC/DC Insulation Resistance:: 1000MΩ Min
Operation Temperature:: -40℃ To +105℃ Contact Material: Phosphor Bronze
Contact Plating: Au Or Sn Over Ni Insulator Material: PBT+30% GF(UL94V-0)
High Light:

printed circuit board connector

,

board to wire connector

2.54 Pitch 2*10Pins IDC Box Header Connector Rectangular Gray Insulator PBT



Products Description:



Products Name Box Header Connector/Wire to Board Connector
Pitch 2.54mm(0.1'')
Color Black/Blue/Gray
Insulator Material PBT+30%GF UL94V-0
Contact Material Brass
Pin Available 6Pins to 64Pins
Current Rating 3.0AMP
Contact Resistance 20mΩ Max
Withstand Voltage 500V AC/DC
Insulation Resistance 1000MΩ
Operation Temperature -40℃ to +105℃
Contact Plating Au Over Ni
Mounting Type Surface Mount/SMT
Termination Solder
Orientation Vertical
Soldering Temperature 260℃ for 10 Seconds





Our Service:



1. Our aim is make sourcing connector easy for you.

2. We'll reply your inquiry within 24hours,Online Inquiry is Welcome

3. We provide OEM,ODM service, Any of special connector requested, We are going to make new mould for you but mould cost half for each.

4. 20pcs free samples, For repeat order customer ,We'll provide more than 20pcs samples for prototype project if necessary.

5.Our business is not just about connector supply, it's about delivering promises



Why Choose CNJWY:



1). Research and Development Capability:

Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.



2). OEM/ODM Producing

CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.



3). Quality Guarantee

Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.



4). Competitive Price

More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.







Product Application:



Box header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
