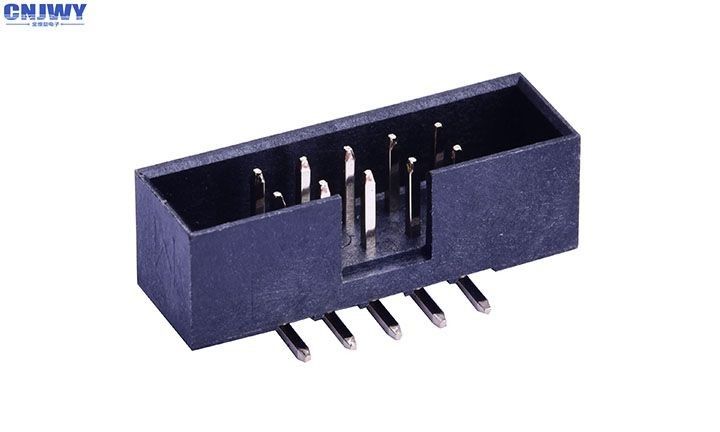

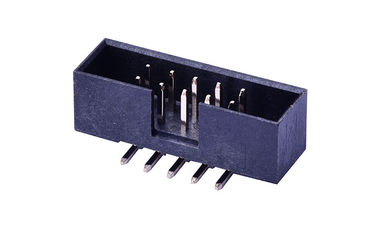

2 * 10 Pin 2.0mm Pitch Box Header Connector Surface Mount Applied In PCBA

China ShenZhen JWY Electronic Co.,Ltd certification
China ShenZhen JWY Electronic Co.,Ltd certification
Their products are nice with decent prices.And also their supply ability is amazing,which is able to make lead-time so impressive.

—— Mr.Formosa

A variety of products with high quality and amazing prices,and also fast response with all actions are the services what they are doing:)Keep going guys!

—— Mr.Rajiv

Particular customized service is what drives me to buy from them.Thanks guys,we would do more business in the coming future for sure.

—— Mr.Michael

I'm Online Chat Now

2 * 10 Pin 2.0mm Pitch Box Header Connector Surface Mount Applied In PCBA

2 * 10 Pin 2.0mm Pitch Box Header Connector Surface Mount  Applied In PCBA
2 * 10 Pin 2.0mm Pitch Box Header Connector Surface Mount  Applied In PCBA 2 * 10 Pin 2.0mm Pitch Box Header Connector Surface Mount  Applied In PCBA

Large Image :  2 * 10 Pin 2.0mm Pitch Box Header Connector Surface Mount Applied In PCBA

Product Details:

Place of Origin: China
Brand Name: JWY
Certification: UL/SGS/RoHs/REACH
Model Number: BX200-XXXXXX

Payment & Shipping Terms:

Minimum Order Quantity: 2Kpcs
Price: Negotiation
Packaging Details: Tray/Tube/Tape/Reel Packing
Delivery Time: 7 to 15 working days
Payment Terms: T/T & Western Union
Supply Ability: 100000pcs per day
Detailed Product Description
Current Rating: 2.0AMP Contact Resistance: 20mΩ Max
Withstand Voltage: 500V AC/DC Insulation Resistance:: 1000MΩ Min
Operation Temperature:: -40℃ To +105℃ Contact Material: Phosphor Bronze
Contact Plating: Au Or Sn Over Ni Insulator Material: PA6T+30% GF(UL94V-0)
High Light:

printed circuit board connector

,

board to wire connector

2*10 Pins Surface Mount Box Header Connector Black Applied In PCBA



Products Description:



1. Electrical Property

Current Rating

2.0 AMP

Contact Resistance

20mΩ Max

Withstand Voltage

500 V AC/DC

Insulation Resistance

1000MΩ Min



2.Physical & Environmental Property

Pitch 2.0mm
Contact Material Brass
Insulation Material PA6T+30% GF(UL94V-0)
Operation Temperature -40℃ to +105℃



3. Mechanical Property

Durability 300 Cycles
Insertion Force 2N Max
Withdrawal Force 0.2N Min



Our Service:

A. Our aim is make sourcing connector easy for you.

B. We'll reply your inquiry within 24hours,Online Inquiry is Welcome

C. We provide OEM,ODM service, Any of special connector requested, We are going to make new mould for you but mould cost half for each.

D. 20pcs free samples, For repeat order customer ,We'll provide more than 20pcs samples for prototype project if necessary.

E.Our business is not just about connector supply, it's about delivering promises



Why Choose CNJWY:



1. Automatic Production

More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.

2. Delivery on time

Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.

3. Make Value

Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.

4. Instant Response

Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.







Product Application:



Box header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
