Payment & Shipping Terms:
|Connector:||Spade Terminal #6stud &Female Shrouded Receptacle||Cable:||UL1007/UL1015/or Specified Wire|
|Length:||Be Customized||Note:||100% Open/short Test|
|Application:||Car Industry/Electric Power Industry/Computer||Port:||Shenzhen|
auto electrical wiring harness,
custom made automotive wiring harness

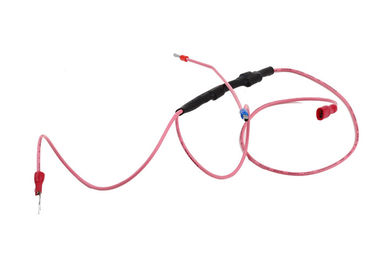

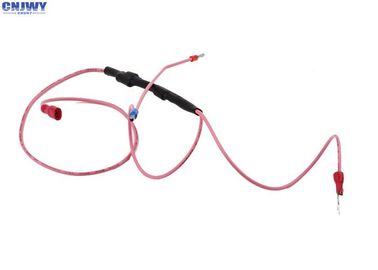

Pink Color Custom Wiring Harness With Diode Wire Terminal Pin Control Wire
|Connector 1||Spade Terminal|
|Connector 2||Female Receptacle 187|
|Connector 3||Wire Pin Terminal|
|Assembled Method||Crimp Terminal|
|Assembled Tooling||Terminal Machine|
|Cable||UL 1007 18 AWG|
|Twisted Length||Be Customized|
|Testing||100% Open & Short Test|
|Packaging||Single PE Bag|
What is Custom Wiring Harness:
1. Custom Wiring Harness is a connection solution for both internal and external machines.Without it, electronic products can't form complete circuits. It's a flexible connecting way,and it's also an amazing technique to crimp,rivete,weld the connection between Housing and Terminal,according to different requirements.
2. Custom Wiring Harness got some types as following:
Automobile Wiring Harness: as we all know,automobile wiring harness is used for internal connections in automobile products,to form an integrated circuit. LED Wiring Harness: it's mainly used for signal transferring in LED outdoor screens,in order to make qualified images on LED screens.
Weak Current Wiring Harness: it usually refers to the internal wiring harness in direct-current circuit or audio line,video line,network line,phone line,smart home system,intelligent robot and so on.Custom Wiring Harness is a kind of production model that assembling different connectors and terminals according to different demands to meet customer's require
Why Choose CNJWY
Research and Development Capability:
Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.
CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.
Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.
More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.
Custom wiring harness widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
