|Connector:||IDC Socket 2*08 Pins||Gender:||Female|
|Color:||Black/Blue||Application:||Print Machine/Signal Transmission|
idc ribbon cable assembly,
2.54 mm pitch ribbon cable

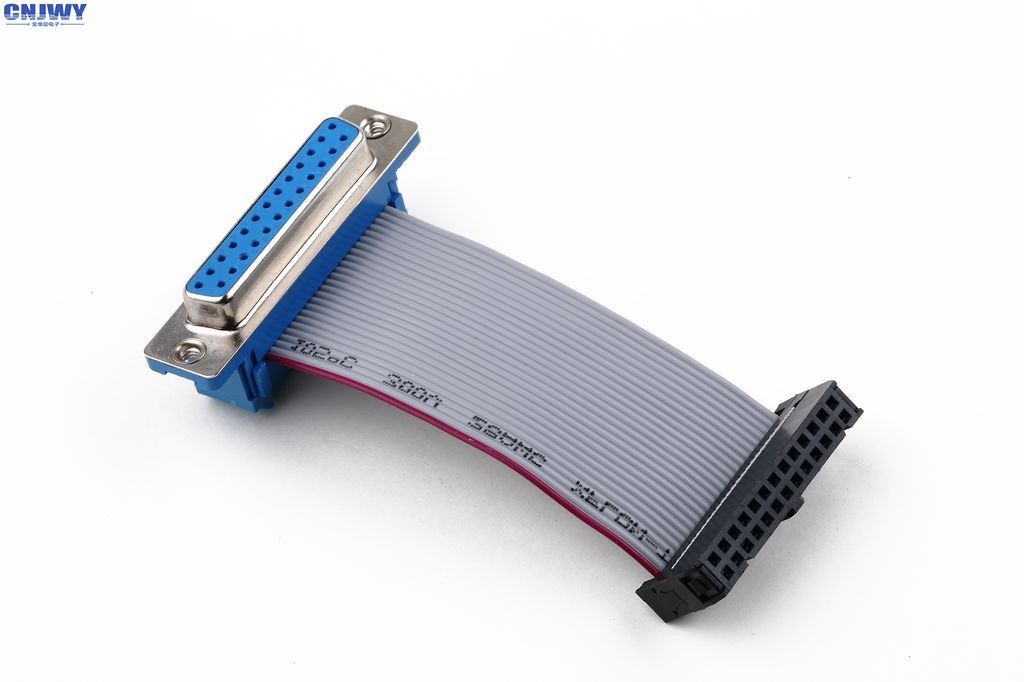

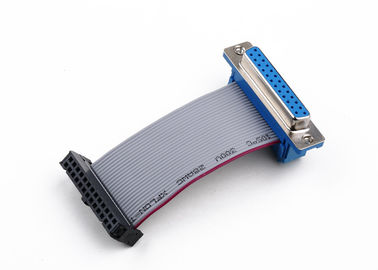

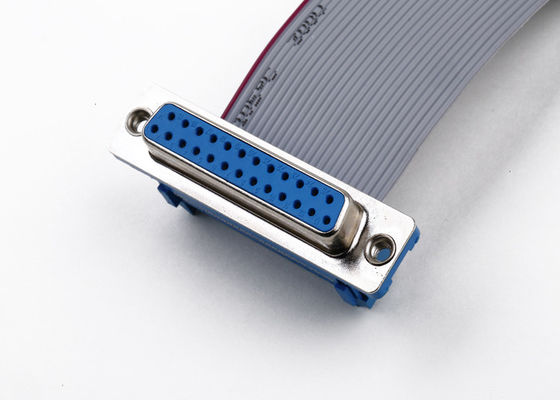

D-Sub 9 Ways Female With IDC Socket Flat Ribbon Cable Assembly Printed Wire
|Connector||FC-16 Pins/ D-sub 15 Ways Rectangular Connector|
|Pins available||06Pins to 64Pins|
|Number of Row||Dual|
|Terminal Finish||Gold over Nickel|
|Cable||UL2651 28AWG 1.27mm Pitch 16 Pins|
|Cable Pins available||06Pins to 64Pins|
|Style||Wire to Board|
|Crimp Orientation||Same Orientation(First Pin is Red Line)|
|Crimp Tools||Semi-Automatic Machine|
|Test||100% Open & Short Test|
|Equivalent Brand||TE Connectivity/AMP/FCI|
|Packaging||Single PE Bag|
|Shipping method||Fedex/DHL/UPS/TNT or Specify Forwarder|
What is the flat ribbon cable assembly
Ribbon Cable Assemblies,IDC, compliant with RoHs,could be customized,1.0mm,1.27mm,2.54mm pitch all available. They are often used for connections to PCBs and for links either within equipment or externally.Ribbon cables have the best ability both in compactness and manageability. We could also provide all kinds of types needed,such as standard grey, color-coded (rainbow) Ribbon in laminated or edge boded form and specials such as twisted pair (twist-n-flat), round jacketed (round-n-flat) and screened ribbon cables.More and more types of connectors with bigger ranges are available now,including standard IDC sockets, D-types, half-pitch D-types, Centronics, Half-pitch Centronics, plus PCB Dual Inline, card-edge and transition connectors.
How to distinguish cable direction
Both bump at the same way.
Both bump at the oppsite way.
3). Up and dowm direction
Both bump at the different way. For the details,you can check as below image description.
Why Choose CNJWY
Research and Development Capability:
Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.
CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.
Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.
More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.
1. Are you a Facotry?
Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.
2. How to get a free sample to check the quality?
We ususlly offer within 20pcs samples, but freight should be coolected
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
Scope of Application:
Flat ribbon cable assembly widely used in different industry such as automotive, medical equipment, outdoor led screen and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
Dual Row 10 Pin Header Connector , Male Pin Pcb Wire To Board Connectors
DIP10 Pin Box Header Connector Contact Resistance 20 MΩ Max Current Rating 1.0AMP
2.54mm Pitch Board To Cable Connectors , Male Pin Board To Wire Connector
Straight Board To Wire Box Header Connector 1.27mm Pitch 34 Pin Gold Flash
2.54mm 10 Ways DIP PCB Wire To Board Connectors Straight Through Hole
2 * 20 Pin PCB Wire To Board Connectors With Latch 1.27 Mm Ejector Header
Black PCB Wire To Board Connectors Gold Flash 1000MΩ Min Insulation Resistance:
Right Angle 26 Pin PCB Wire To Board Connectors Ejector Header Black Color
