ShenZhen CNJWY Electronics Co.,Ltd.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | JWY |
| Certification: | SGS/ROHS/UL/REACH |
| Model Number: | FPCWT-XXXXXXXX |
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | negotiation |
| Packaging Details: | Tube packing / reel packing |
| Delivery Time: | 7 to 15 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000000pcs |
| Working Temperature Rangeance: | -25ºC~+85ºC | Voltage Resistance: | 200V AC R.m.s |
|---|---|---|---|
| Material-Resin: | LCP UL94V-0 | Rated Current: | 1.0 A AC(RMS) |
| Materials-Resin: | PA46 UL94V-0 | Contact Resistance: | 20 MΩ Max |
| Highlight: | flexible flat cable connector,fpc to fpc connector |
||

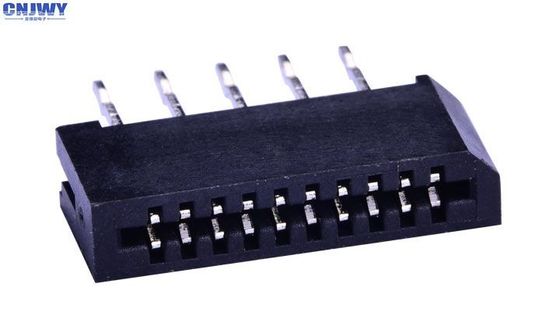

FFC FPC Connector 1.0 mm Positive Backfoot Slot Double Contact Black
FPC FFC flat connector application properties:
FPC FFC is an indispensable part of electronic equipment. Looking through the current flow path, you will always find one or more FPC FFC flat connectors. The form and structure of the FPC FFC flat connector are ever-changing. With different application objects, frequencies, power, and application environments, there are various forms of FPC FFC flat connectors.
The FPC FFC flat connector and the FPC FFC flat connector of the hard disk drive, as well as the FPC FFC flat connector that ignites the rocket, are very different. However, no matter what kind of FPC FFC flat connector, it is necessary to ensure smooth, continuous and reliable flow of current.
FFC FPC connector properties:
| Type | FPC FFC connector |
| Contact | Double contact |
| PIN number | 4-30 |
| Color | Black |
| Spacing | 1.0mm |
| height | 5.5mm |
| Rated voltage | 50V AC(RMS) / DC |
| Working temperature range | -25ºC~+85ºC |
| Contact resistance | 20 mΩ Max |
| Insulation resistance | 500 M Omega Min |
| Material-Resin | LCP UL94V-0 |
Why Choose CNJWY:
1. High-Quality Guarantee
CNJWY has been focusing on improving the Quality Control Systems, aiming at providing high-quality products that fit ISO9001 Certificate for years.
2. Competitive Price
We have a whole set production process which include electroplating,stamping,injection molding,assemly to ensure our competetive price.
3. Customized Packaging
All the products are available for customized packaging according to your demand.
4. Fast Delivery
Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.
Purpose of service:
1. Lead customer choose a best connection sulotion way.
2. 20pcs free sample. Support more than 20pcs sample for old customer.
3. OEM/ODM service. We have a strong R&D team to support connector design.
4. Quickly response, email reply within 12hours,online inquiry is welcome.
5: Serivce attitude:our business is not just connector supply, it's about deliverying promises.
Product Application:
The FFC FPC specifications are as follows:
FPC connector, with lock FPC socket, drawer FPC connector, FPC socket stand-up, horizontal FPC connector, double-touch FPC connector, one-sided. .. .. Etc.. The range of products available is as shown in the reference figure below.
