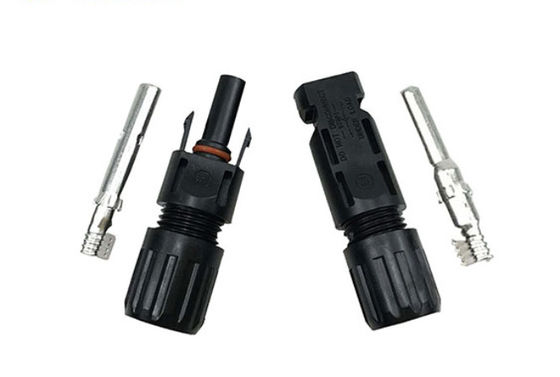

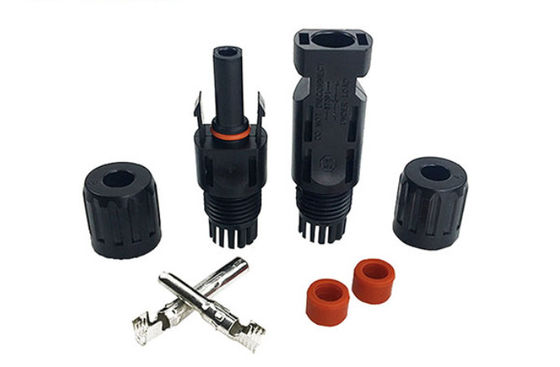

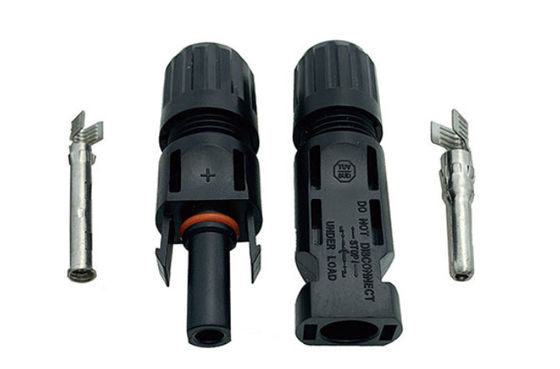

PV004 Solar Connector Special Use For Photovoltaic Power Generation ICE62852

PV004 Solar Connector Special Use For Photovoltaic Power Generation ICE62852
PV004 Solar Connector Special Use For Photovoltaic Power Generation ICE62852 PV004 Solar Connector Special Use For Photovoltaic Power Generation ICE62852 PV004 Solar Connector Special Use For Photovoltaic Power Generation ICE62852 PV004 Solar Connector Special Use For Photovoltaic Power Generation ICE62852

Large Image :  PV004 Solar Connector Special Use For Photovoltaic Power Generation ICE62852

Product Details:

Place of Origin: China
Brand Name: CNJWY
Certification: UL.CE,TUV
Model Number: PV004

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable1000
Price: Negotiation
Packaging Details: PE/BOX
Delivery Time: 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000000
Contact Now
Detailed Product Description
Rated Voltage: 1000V DC Rated Impulse Voltage: 8000V
Rated Insulation Voltage: 6000V Rated Current: 30A
Standard: ICE62852 Protection Level: IP67
Highlight:

panel mount terminal block

,

plug in terminal block

New Standard of Solar Connector PV004 Special use for photovoltaic power generation ICE62852



Features:



1. Load capability with high current and voltage;

2. Low current resistance;

3. Design of waterproof and dustproof;

4. Excellent performances of high-low temperature, fireproof, anti-ultraviolet.



Contact Resistance ≤0.5mΩ
Pollution Level 2
Ambient Temperature -40℃~+85℃
Cable Range 2.5mm²,4.0mm²,6.0mm²
Insulation Material PC EXL933
Flame Class UL 94-V0



PV004 Solar Connector Special Use For Photovoltaic Power Generation ICE62852PV004 Solar Connector Special Use For Photovoltaic Power Generation ICE62852

Tag:

plug in terminal block,

panel mount terminal block,

pcb mount screw terminal block
