Place of Origin: | China |
Brand Name: | JWY |
Certification: | UL/SGS/RoHs/REACH |
Model Number: | ST254-XXXXXX |
Minimum Order Quantity: | 2Kpcs |
---|---|
Price: | Negotiation |
Packaging Details: | PE/Tray/Tube/Tape/Reel Packaging |
Delivery Time: | 7 to 15 working days |
Payment Terms: | T/T & Western Union |
Supply Ability: | 100000pcs per day |
Insulator Material: | PA6T UL94-V0 | Gender: | Male |
---|---|---|---|
Color: | Black | Pitch: | 2.54mm |
Type: | Through Hole | Plastic Height: | 2.5mm |
Highlight: | circuit board pin connectors,right angle pin connector |

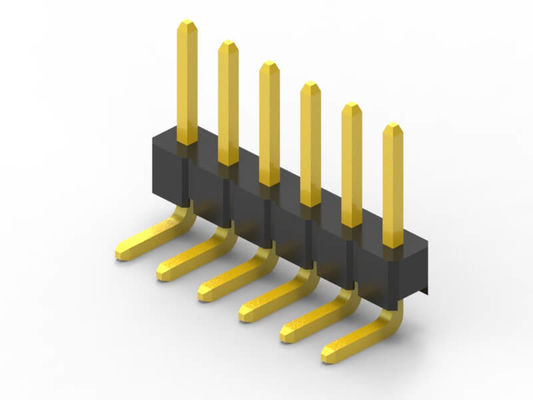

2.54mm Male Pin Header Connector Single Row Concave Bending Gold Flash
What is a PCB Connector?
Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.
PCB Connector orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:
Other names for PCB Connectors
PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.
Specifications:
1. Pitch:2.54mm(0.1'')
2. Connector Name: PCB Connector/Pin Header
3. Insulation Material:PA6T UL 94-V0
4. Contact Material: Copper Alloy
5: Mounting Type: Through Hole
6: Number of Row: Single
7: Contact Finish: Gold or Tin Over Nickel
8: Termination: Solder
9: Color:Standard (Black) or be customized
10: Current Rating:3.0A
11: Withstand Voltage:500V AC/DC
12: Contact Resistance:20mΩ Max
13: Contact Shape: Square Pin
14: Pin Length: Customization
15: Pin Available:2Pins to 100Pins
Why Choose CNJWY:
1. We value time, as the greatest currency. It’s well known that you can never get back lost time. All our products are centered around this idea. At CNJWY, We provide the best solution way to save your time.2. We are deeply committed to the health and safety of the world. CNJWY has been implementing the ISO 14001:2004 environmental management system. We have enhanced our environmental performance. And we apply this regulation to all of our business.
3. All the products are available for customized packaging according to your demand.
4. Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.
Product Application:
Male pin header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
