|Place of Origin:||China|
|Minimum Order Quantity:||2Kpcs|
|Packaging Details:||PE/Tray/Tube/Tape/Reel Packaging|
|Delivery Time:||7 to 15 working days|
|Payment Terms:||T/T & Western Union|
|Supply Ability:||100000pcs per day|
|Color:||Black||Operation Temperature:||-40℃ To +105℃|
|Contact Material:||Phosphor Bronze||Material:||PA6T(UL94-V0)|

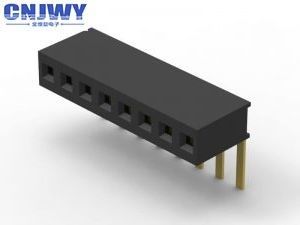

right angle female header,
2 mm pitch female connector
What is a PCB Connector?
Printed Circuit Board connectors are connecting systems, which are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. As PCBs are not hard-wired to each other and can be assembled later in a production process, providing an easy method of Design for Manufacture.
PCB Connector orientations
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments: Parallel or mezzanine – both connectors are vertical orientation;90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.
Other names for PCB Connectors
PCB Connectors are known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. There are also some other names for PCB connectors: Male PCB Connectors usually referred to Pin Headers, as they are simply rows of pins, while Female PCB Connectors named as Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.
How to Packing
We provide flexible packaging methods to meet different requirements. For Female Header connector, there are four methods of packaging:
1. Tray Packing, suitable for manual assembly.
2. Tube Packing, suitable for manual assembly.
3. Reel Packing with tape, suitable for automatic machine producing
4. Reel Packing with Cap, suitable for automatic machine producing
Why Choose CNJWY:
1. High-Quality Guarantee
CNJWY has been focusing on improving the Quality Control Systems, aiming at providing high-quality products that fit ISO9001 Certificate for years.
We have a whole set production process which include electroplating, stamping, injection molding, assembly to ensure our competitive price.
3. Customized Packaging
All the products are available for customized packaging according to your demand.
4. Fast Delivery
Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.
|Connector Type||Female Header|
|Contact Type||Female Socket|
|Style||Board to Board|
|Number of Positions||6Pin to 40Pin available|
|Number of Row||1|
|Mounting Type||Through Hole|
|Contact Finish||Gold Over Nickel|
|Contact Finish Thickness||Flash|
|Operating Temperature||-40℃ to 105℃|
Female Header Connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
