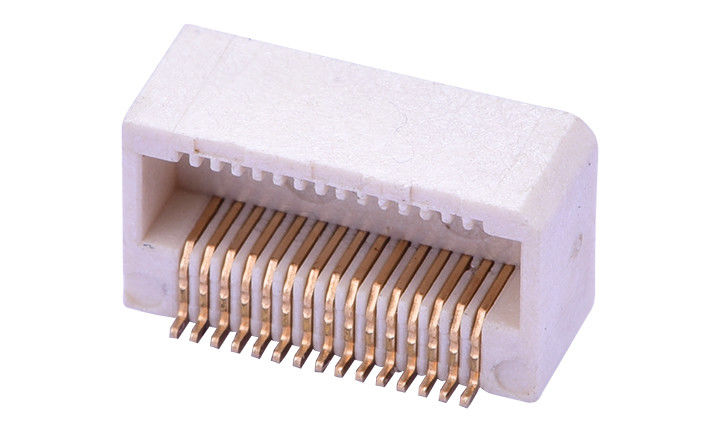

Thin Spaced Smt Board To Board Connector , Right Angle Board To Board Connector

Thin Spaced Smt Board To Board Connector , Right Angle Board To Board Connector

  • Thin Spaced Smt Board To Board Connector , Right Angle Board To Board Connector
Thin Spaced Smt Board To Board Connector , Right Angle Board To Board Connector
Product Details:
Place of Origin: China
Brand Name: JWY
Certification: UL/SGS/ROHS/REACH
Model Number: FBB5030F-XXXXXXXX
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCs
Price: Negotiation
Packaging Details: PE/Tray/Tube/Tape/Reel Packaging
Delivery Time: 5-8 Working datys
Payment Terms: T/T, Western Union
Supply Ability: 100000PCs per day
Contact Now
Detailed Product Description
Contact Resistance: 40 M Omega Max Working Temperature Range: -25ºC~+85ºC
Material - Metal: Phosphor Bronze Voltage Resistance: 500V AC R.m.s
Insulation Resistance: 800 M Omega Min Rated Voltage: 60V AC (RMS) /DC
High Light:

smt board to board connector


surface mount board to board connector

0.5mm Plate To Plate Connector Horizontal 30PIN Mother Seat High 5.0MM


Product characteristics :


Type board to board connector
Height 5.0mm
Spacing 0.5mm
PIN digit 10-40
Durable most plugged 30
Rated current 0.5A AC (RMS)
Material - metal Phosphor bronze
Working temperature range -25 ºC~+85ºC
Voltage resistance 5000V AC r.m.s
Insulation resistance 800 M Omega Min
Rated voltage 80V AC (RMS) /DC


Advantages of thin spaced plates to plate connector series:


1. long self calibration distance, easy assembly and socket.
2. wide open area suitable for standard nozzle size
3. multi point contact system can be securely connected
4. the nickel blocking layer on the single contact can minimize the wicking problem.


Product Application:


As the power supply is widely used in various fields, the board to plate connection of the board to board connector manufacturers
The device is getting more and more applications because it will be smaller and cheaper, so it has become the trend of the wireless device market, so board-to-board connection




1. Are you a Facotry?

Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.

2. How to get a free sample to check the quality?

We ususlly offer within 20pcs samples, but freight should be coolected

3. When can I get a quotation assembly?

There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.

4. What about the lead time for mass production?

It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.


Company Index:

1. Quality policy: innovation, continuous improvement, quality first, customer satisfaction.

2. Environmental policy: comply with environmental regulations, strive to prevent and control pollution, rationally use resources, manufacture green products, raise environmental awareness, and continuously improve the environment.

3. Business philosophy: quality, loyalty, Co-Prosperity.

4. Service quality: technology-oriented, customer-oriented, and advanced high-precision manufacturing process, so that we are in the leading position in the industry. In the future, we will work with you to create a better tomorrow based on our high precision manufacturing technology and high quality service.
