ShenZhen CNJWY Electronics Co.,Ltd.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | JWY |
| Certification: | UL/SGS/RoHs/REACH |
| Model Number: | WR-XXXXXXXX |
| Minimum Order Quantity: | 100PCS |
|---|---|
| Price: | negotiation |
| Packaging Details: | 5 or 10pcs/ cable tie or specified packaging |
| Delivery Time: | 7 to 15 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000PCS per day |
| Connector: | DGB9FT Connector/Bootlace Ferrule/DuPont Recepatcle | Cable: | Hook-up Wire |
|---|---|---|---|
| Length: | Be Customized | Note: | 100% Open/short Test |
| Color: | Various Colors 24AWG | Label: | White Print Shrinkable |
| High Light: | DGB9FT Connector Electrical Cable Assemblies,RoHs Electrical Cable Assemblies,I O Breakout Custom Wiring Harness |
||

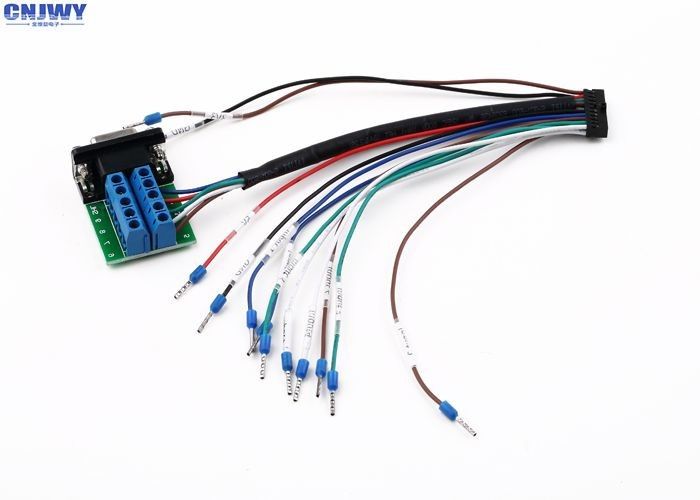

I/O Breakout Custom Wiring harness DGB9FT With 2.0mm DuPont Various Color Wire
Specification:
| Connector 1 | I/O Breackout (DGB9FT) |
| Connector 2 | 20 Ways receptacle wtih locking ramp |
| Connector 3 | Bootlace ferrule |
| Cable | UL 1007 24AWG(Hook-up wire) |
| Cable Color | Various Colors |
| Terminal | Female Crimp |
| Tube | White Shrinkable Tube |
| Length | Be customized |
| Testing | 100% Open & Short Test |
| Packaging | Single PE bag |
| Tooling | Terminal Machine |
| Lead time | 15 working days |
What is Custom Wiring Harness:
1. Custom Wiring Harness is a connection solution for both internal and external machines.Without it, electronic products can't form complete circuits. It's a flexible connecting way,and it's also an amazing technique to crimp,rivete,weld the connection between Housing and Terminal,according to different requirements.
2. Custom Wiring Harness got some types as following:
Automobile Wiring Harness: as we all know,automobile wiring harness is used for internal connections in automobile products,to form an integrated circuit. LED Wiring Harness: it's mainly used for signal transferring in LED outdoor screens,in order to make qualified images on LED screens.
Weak Current Wiring Harness: it usually refers to the internal wiring harness in direct-current circuit or audio line,video line,network line,phone line,smart home system,intelligent robot and so on.Custom Wiring Harness is a kind of production model that assembling different connectors and terminals according to different demands to meet customer's require
Why Choose CNJWY
Research and Development Capability:
Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.
OEM/ODM Producing
CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.
Quality Guarantee
Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.
Competitive Price
More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.
Product Application:
Custom wiring harness widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
