|Place of Origin:||China|
|Minimum Order Quantity:||200Pcs|
|Packaging Details:||PE bag/ Cabel tie/customized packaging|
|Delivery Time:||7 to 15 working days|
|Payment Terms:||T/T, Western Union|
|Supply Ability:||10000PCS per day|
|Connector:||SCSI IDC Connector||Pitch:||1.27mm|
|Contact Finish:||Gold Over Ni|
idc ribbon cable assembly,
2.54 mm pitch ribbon cable

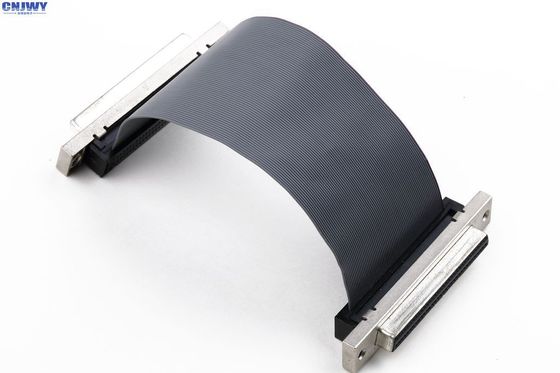

1.27 mm SCSI Female 68 Ways Flat Ribbon Cable Assembly Gray Color Same Direction
|Connector||1.27mm SCIC IDC Connector|
|Pins available||24Pins to 100Pins|
|Number of Row||Dual|
|Terminal Finish||Gold over Nickel|
|Cable||UL2651 28AWG 0.635mm Pitch|
|Cable Pins available||06Pins to 100Pins|
|Style||Wire to Board|
|Crimp Orientation||Same Orientation(First Pin is Red Line)|
|Crimp Tools||Semi-Automatic Machine|
|Test||100% Open & Short Test|
|Equivalent Brand||TE Connectivity/AMP/FCI|
|Packaging||Single PE Bag|
|Shipping method||Fedex/DHL/UPS/TNT or Specify Forwarder|
What is the flat ribbon cable assembly
Ribbon Cable Assemblies,IDC, compliant with RoHs,could be customized,1.0mm,1.27mm,2.54mm pitch all available. They are often used for connections to PCBs and for links either within equipment or externally.Ribbon cables have the best ability both in compactness and manageability. We could also provide all kinds of types needed,such as standard grey, color-coded (rainbow) Ribbon in laminated or edge boded form and specials such as twisted pair (twist-n-flat), round jacketed (round-n-flat) and screened ribbon cables.More and more types of connectors with bigger ranges are available now,including standard IDC sockets, D-types, half-pitch D-types, Centronics, Half-pitch Centronics, plus PCB Dual Inline, card-edge and transition connectors.
Why Choose CNJWY
Research and Development Capability:
Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.
CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.
Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.
More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.
1. Are you a Facotry?
Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.
2. How to get a free sample to check the quality?
We ususlly offer within 20pcs samples, but freight should be coolected
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
Scope of Application:
Flat ribbon cable assembly widely used in different industry such as automotive, medical equipment, outdoor led screen and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
