Long Latch PCB Wire To Board Connectors Ejector Header Withstand Voltage 500V

Long Latch PCB Wire To Board Connectors Ejector Header Withstand Voltage 500V

  • Long Latch PCB Wire To Board Connectors Ejector Header Withstand Voltage 500V
  • Long Latch PCB Wire To Board Connectors Ejector Header Withstand Voltage 500V

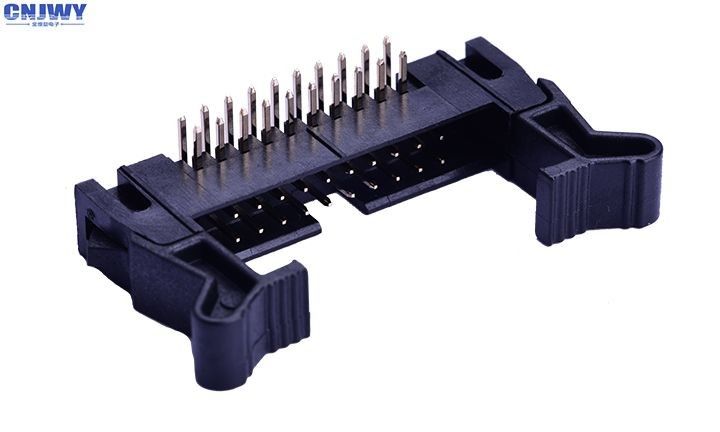

Long Latch PCB Wire To Board Connectors Ejector Header Withstand Voltage 500V
Product Details:
Place of Origin: China
Brand Name: JWY
Certification: UL/SGS/RoHs/REACH
Model Number: EBX127-XXXXXX
Payment & Shipping Terms:
Minimum Order Quantity: 2Kpcs
Price: Negotiation
Packaging Details: PE/Tray/Tube/Tape/Reel Packing
Delivery Time: 7 to 15 working days
Payment Terms: T/T & Western Union
Supply Ability: 100000pcs per day
Contact Now
Detailed Product Description
Current Rating: 2.0 AMP Contact Resistance: 20mΩ Max
Withstand Voltage: 500V AC/DC Insulation Resistance:: 1000MΩ Min
Operation Temperature:: -40℃ To +105℃ Contact Material: Phosphor Bronze
Contact Plating: Au Or Sn Over Ni Insulator Material: PA6T/PA9T/PBT+30% GF(UL94V-0)
High Light:

surface mount wire to board connector

,

2.54 mm wire to board connector

2.00 mm Long Latch Ejector Header PCB Wire to Board Connector Black 90°



Quick Details:

Products Name PCB Wire to Board Connector/Ejector Header
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch 2.00mm(0.079'')
Number of Row Dual
Number of Positions Loaded  All
Row Spacing 2.00mm
Style Wire to Board
Shrouding Shrouded-4 Wall
Mounting Type  Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Shape Square
Contact Finish Gold
Operating Temperature -40°C to 105°C



What is a PCB Connector?

Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.



PCB Connector orientations

The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:

  • Parallel or mezzanine – both connectors are vertical orientation;
  • 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
  • 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors

PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.





Why Choose CNJWY



Automatic Production

More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.

Delivery on time

Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.

Make Value

Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.

Instant Response

Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.



FAQ:

1. Are you a Facotry?

Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.

2. How to get a free sample to check the quality?

We ususlly offer within 20pcs samples, but freight should be coolected

3. When can I get a quotation of cable assembly?

There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.

4. What about the lead time for mass production?

It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.



Scope of application:

PCB Wire to Board Connectors widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
