|Place of Origin:||China|
|Minimum Order Quantity:||1000PCS|
|Packaging Details:||Plastic box packing|
|Delivery Time:||7 to 15 working days|
|Payment Terms:||T/T, Western Union|
|Rated Voltage:||250V AC (RMS) /DC||Contact Resistance:||25 M Omega Max|
|Working Temperature Range:||-55 ℃~+105℃||Rated Current:||3.0A AC (RMS)|
|Insulation Resistance:||1000M Omega Min|
micro usb male connector,
usb circuit board connector

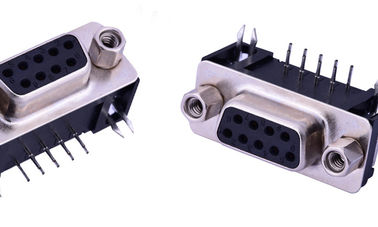

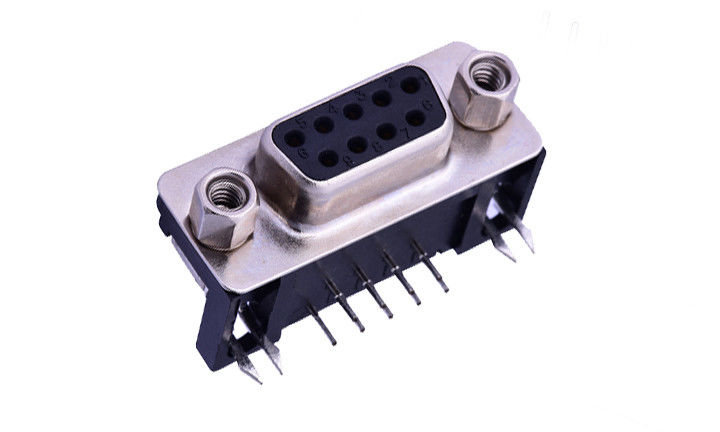

VGA Connector D-SUB Socket 90-Degree Master Seat 9PIN Bit Black Double Row PBT Material
D-SUB usage characteristics:
Currently common in liquid crystal displays are two types of DVI digital video interface and D-Sub analog signal interface. Since the liquid crystal display itself is a pure digital device, if the D-Sub analog signal interface is used, the signal transmission must be converted from digital to analog to digital, and the signal may be distorted due to digital conversion. Therefore, it is considered to be a thankless signal transmission method. The application of the DVI interface allows the graphics card to transmit digital signals directly to the LCD, which can achieve the maximum authenticity of the image.
|Rated current||3.0A AC (RMS)|
|Working temperature range||-55 ℃~+105℃|
|Material - metal||copper alloy|
|Insulation resistance||1000M Omega Min|
|Contact resistance||25 m Omega Max|
|Voltage resistance||500V AC r.m.s|
|Rated voltage||250V AC (RMS) /DC|
|Material - resin||PBT UL94V-0|
Purpose of service:
1. the series of product specifications are complete, but also tailor-made.
2. import equipment and high degree of automation timely delivery. Usually 7-10 days.
3. strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL-certified.
4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive
5. the quality is safe and reliable, the price is competitive.
1. High-Quality Guarantee
CNJWY has been focusing on improving the Quality Control Systems, aiming at providing high-quality products that fit ISO9001 Certificate for years.
2. Competitive Price
We have a whole set production process which include electroplating,stamping,injection molding,assemly to ensure our competetive price.
3. Customized Packaging
All the products are available for customized packaging according to your demand.
4. Fast Delivery
Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.
The use of D-SUB is as follows:
D-SUB products can be divided into welding line series, male head head series, with rivet 9 needles, 15 needles, 25 needles, 44 needles, etc..
