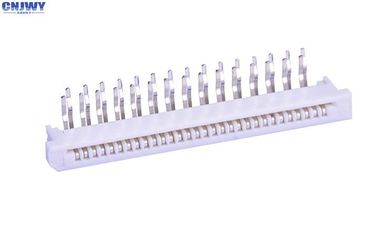

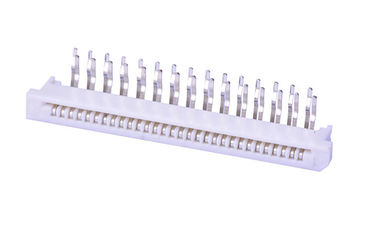

Flexible Flat Cable Connector , Ffc To Wire Connector Rated Current 1.0A

Flexible Flat Cable Connector , Ffc To Wire Connector Rated Current 1.0A

  • Flexible Flat Cable Connector , Ffc To Wire Connector Rated Current 1.0A
  • Flexible Flat Cable Connector , Ffc To Wire Connector Rated Current 1.0A
Flexible Flat Cable Connector , Ffc To Wire Connector Rated Current 1.0A
Product Details:
Place of Origin: China
Brand Name: JWY
Certification: SGS/ROHS/UL/REACH
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiation
Packaging Details: Tube packing / reel packing
Delivery Time: 7 to 15 working days
Payment Terms: T/T, Western Union
Supply Ability: 10000000pcs
Contact Now
Detailed Product Description
Rated Voltage: 50V AC (RMS) /DC Insulation Resistance: 800 M Omega Min
Working Temperature Rangeance: -40ºC~+85ºC Voltage Resistance: 200V AC R.m.s
Materialal: PBT Rated Current: 1.0 A AC(RMS)
High Light:

flexible flat cable connector


fpc to fpc connector

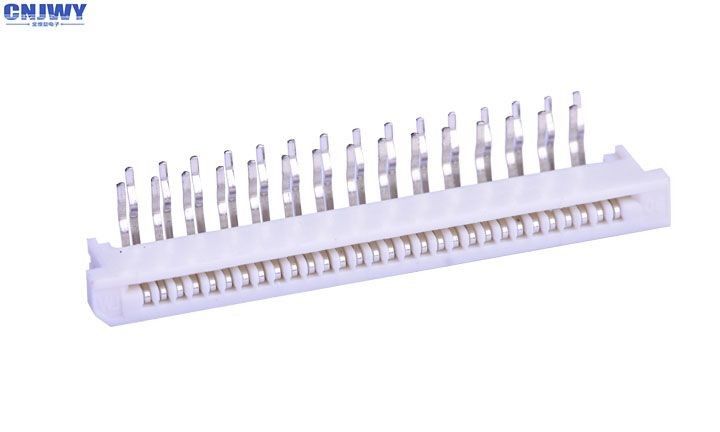

FFC FPC Connector 1.0 MM 90 Degree Plug-In Beige Product Height 3.2 MM Material PBT


Product Specifications:


Type  FFC FPC connector 90 degrees
PIN number   4-40
Spacing  1.0mm
height  3.2mm
Rated current  1.0A AC (RMS)
Working temperature range  -40ºC~+85ºC
Contact resistance  20 m Omega Max
Voltage resistance 500V AC r.m.s
material quality PBT



service idea:


1. the series of product specifications are complete, but also tailor-made.
2. import equipment and high degree of automation timely delivery. Usually 7-10 days.
3. strict implementation of the ISO 9000 and ERP system, the supply of materials strictly in accordance with the quality and standard production control. Product quality assurance through UL-certified.
4. Free sample 15-20 sets, cost-effective, the same quality unit price is very competitive
5. the quality is safe and reliable, the price is competitive.



Our strengths:

1. Concentrating and concentrating "is a consistently adhered service concept


2.The company has a standardized, standardized and professional service system to provide customers with rich service experience and professional knowledge to ensure that customers enjoy high quality, high efficiency and personalized service resources.


3. Meet the needs of different levels of customers to achieve the value of customers in the use of products.


4. It is our duty to serve you. Your satisfaction is our pursuit.


5. After sale service four "to": customer oriented, in good faith as the principle, with the most economic means, with the fastest speed.


What is an FPC connector?

The FPC FFC flat connector is not limited to current. In the rapid development of Optoelectronics technology, the carrier of the optical fiber system is light, and glass and plastic replace the wires in ordinary circuits. However, FPC FFC flat connectors are also used in the optical signal path, and their role is the same as that of the circuit FPC FFC flat connector.
Its biggest advantage is that it does not require cables. It is simple to install and disassemble, easy to replace on the spot, fast fit, smooth and stable separation, and good high-frequency characteristics can be obtained.


Foundation issues for FPC connectors:

Use one
In general, FPC connectors have more pins and pins, and must be correctly aligned with the interfaces of each pin hole to plug in. Otherwise, if the pin socket position of the connector is not completely aligned, it will easily cause the pin of the connector to bend or break.


Use two
In the use of FPC connectors, do not touch the pin pin of its interface casually, so as not to cause some electric shock and other accidents. Because the connector is in the interface power supply, there is a current at each end of the interface, and if it is touched, it will cause a safety shock. And because the connector end pin is generally relatively small and sharp, if you touch it with your hand, it is also easy to cause some scratches.


The FFC FPC connector application area is shown below for reference:


Flexible Flat Cable Connector , Ffc To Wire Connector Rated Current 1.0A 0
