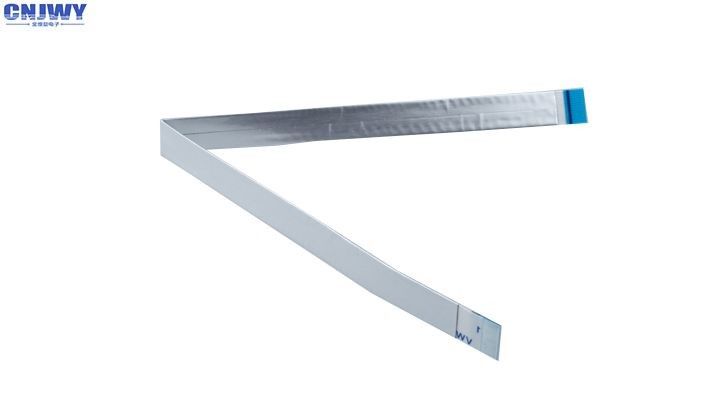

1.0 Mm Pitch FFC Ribbon Cable 16 Ways Various Flexibility Current Rating 0.5AMP

1.0 Mm Pitch FFC Ribbon Cable 16 Ways Various Flexibility Current Rating 0.5AMP

  • 1.0 Mm Pitch FFC Ribbon Cable 16 Ways Various Flexibility Current Rating 0.5AMP
  • 1.0 Mm Pitch FFC Ribbon Cable 16 Ways Various Flexibility Current Rating 0.5AMP
1.0 Mm Pitch FFC Ribbon Cable 16 Ways Various Flexibility Current Rating 0.5AMP
Product Details:
Place of Origin: China
Brand Name: JWY
Certification: UL/SGS/RoHs/REACH
Model Number: 1025-XXXXXXXXX
Payment & Shipping Terms:
Minimum Order Quantity: 2Kpcs
Price: Negotiation
Packaging Details: PE Packaging
Delivery Time: 7 to 15 working days
Payment Terms: T/T & Western Union
Supply Ability: 100000pcs per day
Contact Now
Detailed Product Description
Current Rating: 0.5AMP Contact Resistance: 30mΩ Max
Withstand Voltage: 500V AC/DC Operation Temperature: -20℃ To +85℃
Contact Material: Phosphor Bronze Application: Multimedia/Cameras/medical Equipment
High Light:

ffc flexible flat cable

,

flat flex ribbon cable

1.0 mm EMI Printer FFC Ribbon Cable 16 Ways Various Flexibility Low Rating



Speicification:

Number of Conductor 16 Pins
Pitch 1.0mm±0.10
Width 17mm±0.15
Total Pitch 15mm±0.10
Margin 1.0mm±0.15
Total Length XXmm±3mm
Terminal Thickness 0.30±0.05
Insertion Thickness 0.121 ±0.02
Conductor Strip Length 4.0±1.0mm
Supporting Tape Length 8.0±2.0mm
Conductor Thickness 0.035±0.005
Conductor Width 0.65±0.03
Slanting <0.50
Supporting Tape Color Blue
Supporting Tape Spec 0.225mm
Insulation Film Spec 43um





What's the Flexible Flat Cable(FFC)



Flexible flat cable is new type connection data cable, which made by PET insulation and thinner copper conductor.

They widely used in consumer electronics and more and more choose by every industry customer.

Generally, There are 0.5mm/1.0mm/1.25mm/2.0mm/2.54mm and so on.





Why Choose CNJWY



Automatic Production

More than 80% CNJWY products are made by automatic assembly lines. As intelligent is more and more widely in use, We could only adapt the development of the times,so that we could provide most qualified products to our clients.

Delivery on time

Every customer is distinctive,so we have to make every delivery in time to cherish every chance given by our customers.

Make Value

Business is like a long journey. The value is the views on the way.Making value for the customers is to make value for the company ,as mutual win-win is our goal.

Instant Response

Everybody will get in trouble now and then,same as working time. Instant response might be possible to solve the problems customers meet in time.



Product Application:



FFC Cable widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
