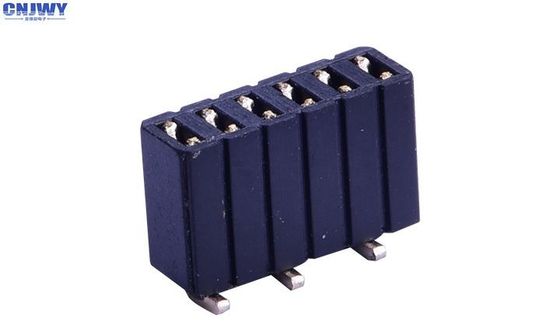

250V AC 1.27mm Pitch Female Pin Header 4.6mm Height

250V AC 1.27mm Pitch Female Pin Header 4.6mm Height

  • 250V AC 1.27mm Pitch Female Pin Header 4.6mm Height
  • 250V AC 1.27mm Pitch Female Pin Header 4.6mm Height
250V AC 1.27mm Pitch Female Pin Header 4.6mm Height
Product Details:
Place of Origin: CHINA
Brand Name: CNJWY
Certification: UL/ROSH/REACH/TS16949
Model Number: FH-XXXXXXXX
Payment & Shipping Terms:
Minimum Order Quantity: 2KPCS
Price: 0.02USD to 0.5USD
Packaging Details: Tube/Tray/Reel Packaging
Delivery Time: 7 to 10days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000000PCS/Month
Contact Now
Detailed Product Description
Material: PA6T+30% Glass Fiber Height: 4.6mm
Finsh: Gold Plated Pin: 2*2P To 2*20P
Current Rating: 1A Withstanding Voltage: 250V
Contact Material: Phosphorous Bronze
High Light:

1.27mm Pitch Female Pin Header


250V AC Female Pin Header


4.6mm Height Female Header Socket

1.27mm Pitch Header 1*XXP SMT Type Black insulation H=4.6mm Gold Flash 1U


What's the Female Header


  1.  Female header is called PCB Connector. Based on different designs for PCB, they choose different pitch connectors for signal transmission
  2. 0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team.
  3. Generally, Female headers with suited pin headers are used to finish created modules in electronic industry.
  4. Regarding Female header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet.
  5. Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability



How to Order

  1. Send us a inquiry online, tell me what's the original part(Samtec.Harwin and so on) you used before. We will advise you our equivalent part.
  2. Drop us a calling,You can find our more details contact information in our website
  3. Contact us via WhatsApp and Skype, We are 24hours online service.(86-18688756107 and 86-1587414406​)
  4. Email us,We will reply your inquiry within 12hours





Current Rating 1.0 AMP
Contact Resistance 20 mΩ Max
Withstand Voltage 250V AC/DC
Insulation Resistance 1000MΩ Min
Operation Temperature -40℃ to 105℃
Contact Material Coppy Alloy
Products Name Female Header Connector
Pitch 1.27mm(0.079'')
Mounting Type SMT
Contact Plating Au over Ni
Insulator Material PA6T+30%GF(UL94V-0)
Termination Solder
insertion Force 2N Max
Withdrawal Force 0.3N Min
Durability 300 Mating Cycles
Solder Temperature 260℃ for 10 seconds
Packing Tube/Reel
Color Black




250V AC 1.27mm Pitch Female Pin Header 4.6mm Height 0
