ShenZhen CNJWY Electronics Co.,Ltd.
Sales & Support:
 |
| Place of Origin: | Guangdong, China |
| Brand Name: | CNJWY |
| Model Number: | Pin Header |
| Minimum Order Quantity: | 1000 pieces |
|---|---|
| Price: | $0.01 - $0.02/pieces |
| Packaging Details: | Factory OEM 2mm 1.27mm 1.0 2.0 2.54 Pitch Single Double Row 1.27 2.54mm Female Male Pin Header Connector<br>Bagged/Tube/Tape-Reel |
| Supply Ability: | 100000 Piece/Pieces per Day |
| Type: | Pin Header | Application: | PCB, Machinery Equipment |
|---|---|---|---|
| Gender: | Male | Product Name: | Female Male Pin Header Connector |
| Material: | PBT/PA66 | Function: | Connected |
| Usage: | Widely Used | Contact Material: | Gold |
| Operatioin Temperature: | -55~125℃ | Application2: | PCB |
| Highlight: | 2.54mm Male Pin Header,Single Row Male Pin Header,1.27mm long pin header |
||

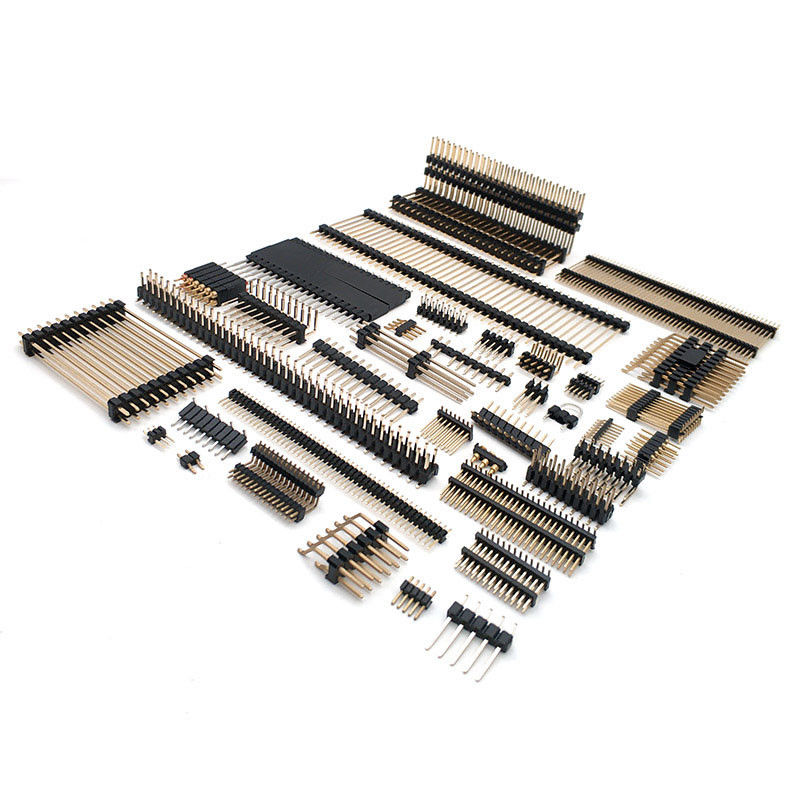

Single Row 1.27mm 2.54mm Male Pin Header Connector For PCB
Products Description
|
Product Name |
Pin Header |
Contact Resistance |
20m Ω Max |
||
|
Insulation Resistance |
1000m Ω Min |
Contact Sleeve Material |
Brass |
||
|
Contact Plating |
Au, Sn over Ni |
Material Flammability Rating |
94-V0 |
||
|
Contact Plating Thickness |
G0 to G6 |
Operating Temperature |
-40°C to +105°C |
||
|
Current Rating |
1.0AMP |
Withstand Voltage |
500V AC/DC |
||
|
No. of Row |
1,2,3 |
Mounting Type |
Vertical |
||
|
No. of Positions |
Custom(1-50pin) |
Manufacturer Standard Lead Time |
3-5 Days |
||
|
Row Spacing |
Custom |
Plastic material |
Custom(PA6T/PBT) |
||
|
Application |
Telecommunication equipment ,computer ,controllers ,alarm security |
|
|
||
Application Of Pin Header Connector
For data transfer and charging:Mobile phone, mobile power, charger Camera,Digital Audio,Tablet PCs / Notebook PCs,DSCs / DVCs, Audio Players, FPD / LCD TVs, Printers / Copiers, Industrial Equipment, Medical Equipment, security etc.
3 pin is widely used in display, digital camera, MP3, MP4, PDA, computer, computer motherboards, mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc.. Provide the most reliable connection for the plate to plate and the line to plate.
Contact Person: Mr. Steven Luo
Tel: 8615013506937
Fax: 86-755-29161263
