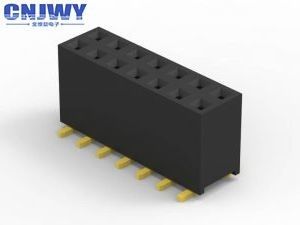

Professional PCB Header Connector Standard Black or Customizable Withstand Voltage 500V AC/DC Contact Resistance 20mΩ Max

Product Description:

The PCB Header Connector product is a versatile and reliable cable joint connector designed for various electronic applications. With a contact finish of Gold Over Nickel, this connector ensures optimal conductivity and durability for long-lasting performance.

Designed for Surface Mount Technology (SMT), the mounting type of this connector allows for easy and efficient installation onto PCBs. Whether you are working on a complex electronic project or a simple circuit design, the SMD/SMT mounting type ensures a secure and stable connection.

Featuring a wide range of pin options, from 2 pins to 40 pins, this PCB Header Connector offers flexibility and compatibility with different electronic components. Whether you need to connect a few components or multiple devices, this connector provides the necessary pin availability to meet your requirements.

The insulation material of the PCB Header Connector is made of PA6T UL 94-V0, ensuring high heat resistance and flame retardancy. This makes the connector suitable for a wide range of electronic applications where safety and reliability are paramount.

Belonging to the product category of PCB Header Connector, this electronic component connector is a versatile and essential part of any electronic system. Whether you are working on designing a new electronic device or repairing an existing one, this connector provides the connectivity and functionality you need.

Overall, the PCB Header Connector is a reliable and high-quality connector that is suitable for a wide range of electronic applications. With its Gold Over Nickel contact finish, SMD/SMT mounting type, versatile pin availability, and high-quality insulation material, this connector is a must-have for any electronics enthusiast or professional.

Features:

• Product Name: PCB Header Connector
• Mounting Type: SMD/SMT
• Insulation Resistance: 1000MΩ Min
• Contact Material: Copper Alloy
• Operation Temperature: -40℃ To +105℃
• Current Rating: 1.0AMP

Technical Parameters:

Applications:

JWY ST127-XXXXXX PCB header connectors are versatile components suitable for a wide range of product application occasions and scenarios. These connectors, with their high-quality design and reliable performance, are perfect for various industries and projects.

One of the key application scenarios for these connectors is in bed frame connectors. The JWY PCB header connectors provide a secure and stable connection between different parts of a bed frame, ensuring durability and safety.

Another common use case for the JWY ST127-XXXXXX connectors is in circuit board wire connectors. These connectors facilitate the efficient and seamless connection of wires on circuit boards, enabling smooth electrical flow and signal transmission.

When it comes to board-to-board power connectors, JWY PCB header connectors are the ideal choice. With their square pin contact shape and gold over nickel contact finish, these connectors offer excellent conductivity and reliability for power transfer between circuit boards.

Manufactured in China, these connectors come with UL, SGS, RoHs, and REACH certifications, ensuring compliance with international quality and safety standards. The minimum order quantity for these connectors is 2Kpcs, and the price is negotiable based on the order quantity.

Payment terms accepted include T/T and Western Union, making it convenient for customers to complete transactions. With a supply ability of 100,000pcs per day, JWY PCB header connectors can meet both small and large-scale production requirements.

The delivery time for these connectors is 7 to 15 working days, allowing for quick turnaround times for urgent projects. Packaging details include PE/tray/tube/tape/reel packaging, providing options for different shipping and storage needs.

With an insulation resistance of 1000MΩ minimum and pin availability ranging from 2 pins to 40 pins, these connectors offer flexibility and reliability for various applications. The mounting type for these connectors is SMD/SMT, making them easy to install on circuit boards.
