Automotive Grade 2.54MM Dual Row Female Header Connector Gold Flash PA9T High Vibration PCB Through Hole IP67

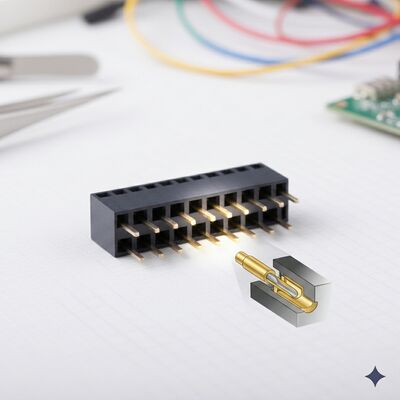

CNJWY introduces its Automotive Grade 2.54MM Dual Row Female Header Connector, purpose-engineered from the ground up to meet the extreme reliability demands of modern vehicle electronic systems. Built with PA9T high-temperature thermoplastic rated for continuous operation from -55°C to +125°C and validated against automotive vibration profiles up to 10G RMS, this connector is designed to survive the harsh under-hood, chassis-mounted, and cabin environments encountered in passenger vehicles, commercial trucks, and off-highway equipment. The gold flash plated phosphor bronze contacts maintain stable electrical connections despite constant thermal cycling, mechanical shock, and high-frequency vibration that would cause fretting corrosion and intermittent failures in standard commercial-grade connectors. The through-hole termination with reinforced solder tails provides the mechanical anchoring strength necessary to withstand years of vehicle operation without solder joint fatigue. While positioned as an automotive-grade solution, this connector's enhanced reliability characteristics make it equally suitable for railway signaling, marine electronics, industrial robotics, and any application where connector failure is simply not an option.

• Automotive Environmental Validation: Engineered to meet the environmental stress requirements of AEC-Q200 passive component qualification, including thermal shock cycling from -55°C to +125°C, humidity resistance testing at 85°C/85% RH, and mixed flowing gas corrosion exposure. This validation ensures consistent performance across the full vehicle service lifetime.
• 10G RMS Vibration Resistance: The reinforced through-hole termination design with enlarged solder pad contact area has been validated under random vibration profiles up to 10G RMS across 10Hz to 2000Hz frequency range, meeting the requirements of ISO 16750-3 for chassis-mounted and engine-mounted electronic components.
• PA9T Extended Temperature Range: The PA9T high-performance polyamide insulator reinforced with 30% glass fiber maintains mechanical and dielectric properties across the full -55°C to +125°C automotive temperature range, with no embrittlement at low temperatures and no softening at high temperatures.
• Fretting-Resistant Gold Flash Plating: The gold flash over nickel plating system on phosphor bronze contacts resists fretting corrosion, a failure mechanism caused by micro-motion between mated contacts under vibration. Stable contact resistance below 20mΩ is maintained throughout the connector lifetime despite constant environmental stress.
• Reinforced Solder Joint Design: Through-hole solder tails with 0.65mm diameter and 3.0mm length provide 50% more solder joint contact area than standard commercial connector designs. This reinforcement prevents the solder joint fatigue cracking that is the primary failure mode of through-hole connectors in high-vibration environments.
• Comprehensive Quality Documentation: Every automotive-grade production lot includes full material certifications, plating thickness measurement reports, and lot-specific test data for insertion force, contact resistance, and dielectric withstanding voltage. PPAP Level 3 documentation packages are available for automotive production part approval requirements.

The automotive grade female header connector is critical to the reliability of modern vehicle electronic architectures. Engine control units (ECUs) and powertrain control modules employ these connectors for sensor interfaces, actuator drivers, and communication bus connections where failure could result in vehicle immobilization or emissions non-compliance. Advanced driver assistance systems (ADAS) including radar, LiDAR, and camera modules depend on vibration-resistant connectors to maintain the sensor data integrity essential for autonomous emergency braking and lane-keeping functions. Body control modules managing lighting, climate control, power windows, and central locking rely on these connectors for reliable operation across extreme cabin temperature variations. Electric vehicle battery management systems (BMS) use automotive-grade connectors for cell voltage monitoring and temperature sensing interconnects where intermittent connections could cause dangerous cell imbalance conditions. Infotainment systems, instrument clusters, and telematics modules benefit from the connector's enhanced reliability in dashboard environments subject to direct sunlight heating. Beyond automotive, railway signaling and train control systems, marine navigation electronics, wind turbine pitch control systems, industrial robot joint interconnects, and defense ground vehicle electronics all deploy automotive-grade connectors for their proven reliability in demanding operational environments.

CNJWY automotive grade female header connectors are packaged in anti-static protective tubes with additional vibration-dampening foam inserts to prevent contact fretting during transportation. Each tube holds 10-35 connectors depending on pin count. For high-volume automotive Tier-1 customers, custom returnable packaging systems with precision-machined tray pockets are available to support just-in-time (JIT) production line delivery. All packaging materials meet automotive industry ESD protection requirements per IEC 61340-5-1. Every production lot undergoes 100% automated optical inspection plus lot-sample testing for insertion force, contact resistance (all positions), dielectric withstanding voltage, and dimensional verification against the customer-approved drawing. Full material certifications, plating thickness XRF reports, and lot traceability documentation are provided as standard. CNJWY manufacturing operates under ISO9001:2015 and IATF 16949 certified quality management systems with full UL, SGS, ROHS, and REACH compliance. PPAP Level 3 submission packages, IMDS material data reporting, and automotive-specific custom configurations are supported through our dedicated automotive engineering team. Standard delivery is 7-10 working days with minimum order quantity of 2,000 pieces.
