ShenZhen CNJWY Electronics Co.,Ltd.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | JWY |
| Certification: | UL/CUL/VDE/CQC |
| Model Number: | WR-XXXXXXXX |
| Minimum Order Quantity: | 500PCS |
|---|---|
| Price: | negotiation |
| Packaging Details: | 5 or 10pcs/ cable tie or specified packaging |
| Delivery Time: | 7 to 15 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000PCS per day |
| Length: | Be Customized | Cable: | UL1007/UL1015/or Specified Wire |
|---|---|---|---|
| Connector: | Spade Terminal & 187 Female Receptacle | Stud: | #6/#8/#10 |
| Application: | Equipment Internal | Color: | Various |
| High Light: | UL1007 Durable Electrical Cable Assemblies,Spade Terminal Electrical Cable Assemblies,Receptacle Vehicle Wiring Harness |
||

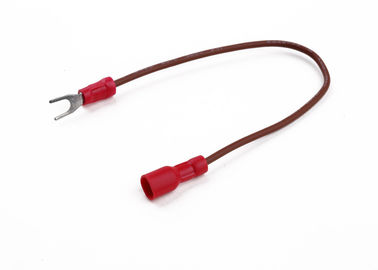

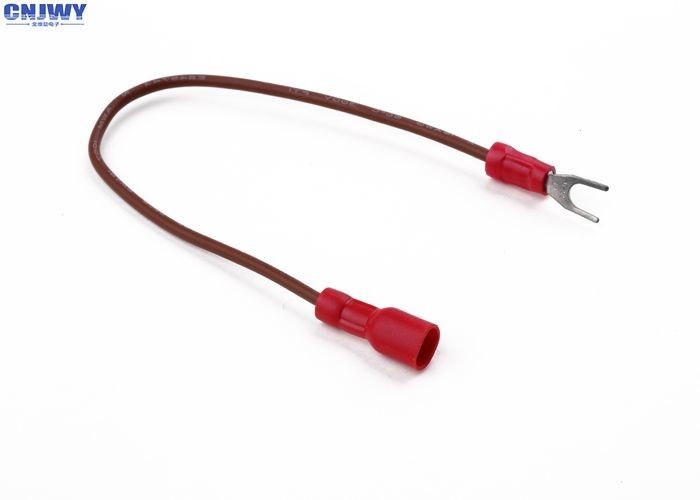

#6/#8/#10 Stud Terminal & 187 Receptacle Red Custom Wiring Harness 18AWG Wire
Specification:
| Products Name | Wiring Harness |
| Application | Equipment/Machine Internal |
| Connector 1 | Spade Terminal |
| Connector 2 | Female 187 Receptacle |
| Cable | UL 1007 18AWG |
| Cable Available | UL1007/UL1015/UL1569/UL1571/UL1671/UL1430 |
| Color of Cable | Various |
| Testing | 100% Open & Short Test |
| Packaging | Single PE bag |
| Shipping method | DHL/Fedex/Ups/TNT/ China Post |
| Delivery day | 7 working days |
| Insulation Material | PVC |
What is Custom Wiring Harness:
1. Custom Wiring Harness is a connection solution for both internal and external machines.Without it, electronic products can't form complete circuits. It's a flexible connecting way,and it's also an amazing technique to crimp,rivete,weld the connection between Housing and Terminal,according to different requirements.
2. Custom Wiring Harness got some types as following:
Automobile Wiring Harness: as we all know,automobile wiring harness is used for internal connections in automobile products,to form an integrated circuit.
LED Wiring Harness: it's mainly used for signal transferring in LED outdoor screens,in order to make qualified images on LED screens.
Weak Current Wiring Harness: it usually refers to the internal wiring harness in direct-current circuit or audio line,video line,network line,phone line,smart home system,intelligent robot and so on.
Custom Wiring Harness is a kind of production model that assembling different connectors and terminals according to different demands to meet customer's requirement.
Why Choose CNJWY
Research and Development Capability:
Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.
OEM/ODM Producing
CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.
Quality Guarantee
Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.
Competitive Price
More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.
Product Application:
Your one-stop Wiring Harness solution supporting. Custom wiring harness widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team
