|Place of Origin:||China|
|Minimum Order Quantity:||2Kpcs|
|Packaging Details:||PE/Tray/Tube/Tape/Reel Packaging|
|Delivery Time:||7 to 15 working days|
|Payment Terms:||T/T & Western Union|
|Supply Ability:||100000pcs per day|
|Current Rati:||1AMP||Contact Resistance:||20mΩ Max|
|Withstand Voltage:||500V AC/DC||Insulation Resistance:||1000MΩ Min|
|Operation Temperature:||-40℃ To +105℃||Contact Material:||Phosphor Bronze|
|Contact Plating:||Tin Plated||Insulator Material:||PA46+30%GF(UL94-0)|
idc socket connector,
idc header connector

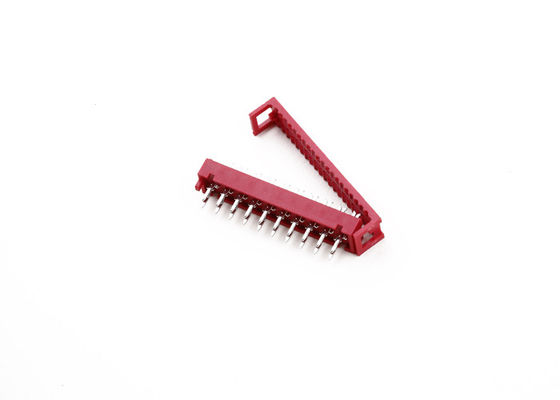

1.27mm Micro Match 2*12 Ways IDC Cable Connector Red Color PBT Material
|Products Name||IDC Connector/Rectangular Connector|
|Number of Row||Dual Row|
|Contact Type||Female Sokcet|
|Contact Finsh||Tin over Ni|
|Wire Type||Ribbon Cable|
|Features||Feed Trhough,Polarizing Key|
|Pins Available||6Pins to 34Pins|
|Mounting Type||Free Hanging(In-Line)|
|Current Rating||1.0 AMP|
|Voltage Rating||250 V AC/DC|
|Temperature Range||-40°C to +105°C|
|Contact Resistance||20mΩ Min|
|Insulation Resistance||1000MΩ Min|
|Withstanding Voltage||500 V AC/Min|
What's the Mirco Match IDC Connector
A contact concept that inspires. The Micro-MaTch contact concept is essentially different from other systems available. By its design, the traditional failure mode in tinplated connections, fretting corrosion, is prevented. The separation of the two basic functions of the contact system (contact force generation and wire termination), enables the optimization of both functions and leads to relatively simple contact shapes. The Micro-MaTch contact helps prevent fretting corrosion, the traditional failure mode in tin-plated connections. Relative movements caused by vibrations/thermal expansion can be prevented so that a gas tight connection can make the Micro-MaTch contact spring system fretting corrosion resistant.
A more economical design that meets the needs of less demanding applications. The Micro-MaTch Value-line is the latest addition to the well-established Micro-MaTch connector family. This new series features a more economical design and meets the needs of less demanding applications in the Industrial, Consumer and Datacom industry. The Micro-MaTch Value-line is built around the existing high quality Micro-MaTch connector system and has been developed to suit environments where a broad temperature range, many mating cycles and vibration resistance are less relevant. On a pitch of 1.27mm, Micro-Match Value-line offers a variety of wire-to-board inter-connections.
Why Choose CNJWY
Research and Development Capability:
Strong research and development capability on product designing and mould developing makes CNJWY able to evaluate the new product,which could help clients save the time cost.
CNJWY has our own assembly lines from electroplating,stamping,moulding,injection and packaging.
Strictly following the demands of ISO9001-2015,CNJWY is able to produce products of highest quality.
More than 10 years of producing experience,CNJWY is always specializing in improving the production capacity.Competitiveness provides competitive price for the valued customers.
1. Are you a Facotry?
Yes, We are the one of largest connector manufacturer local in Shenzhen,China.We warmly welcome you visit our facotry.
2. How to get a free sample to check the quality?
We ususlly offer within 20pcs samples, but freight should be coolected
3. When can I get a quotation of cable assembly?
There are two differents way to get a quote, one is online inquiry, one is email us.We'll detail with your inquirys within 12hours.
4. What about the lead time for mass production?
It depend on order quantity. Generally speaking, We'll finish your order within 2weeks. Urgent part will delivery in one week.
Scope of Application:
IDC Cable Connector widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
